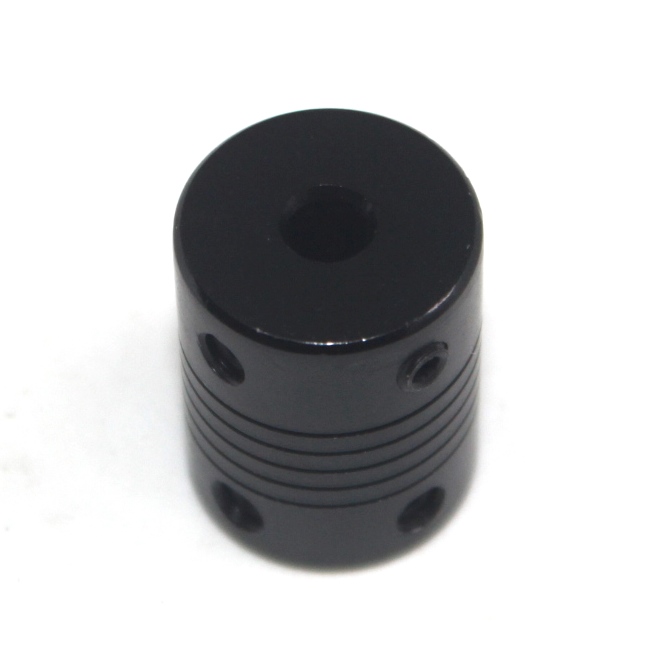

Flexible Aluminum coupler
This content will be shared across all product pages.
Description:
The Flexible Aluminum Coupler is used for connecting two shafts in mechanical systems. It provides flexibility and compensates for minor misalignments, ensuring precise and reliable shaft coupling. Its robust aluminum construction ensures durability and long-term performance.
Key Features:
- High Flexibility: Compensates for minor shaft misalignments
- Durable Construction: Made from high-quality aluminum for strength and longevity
- Easy Installation: Simple to mount and secure
- Lightweight: Minimal additional weight to the system
- Versatile Use: Suitable for a wide range of mechanical and robotics applications
- Material: Aluminum
- Inner Diameter: 5mm, 6mm, 8mm
- Outer Diameter: 19mm
- Length: 25mm
- Maximum Torque: 2Nm
- Temperature Range: -40°C to 100°C
- Robotics: Connecting motors to drive shafts
- CNC Machines: For precise motion control
- 3D Printers: Ensuring smooth and accurate movements
- Automated Machinery: Used in various automated systems
- DIY Projects: Ideal for custom mechanical builds and prototypes
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
