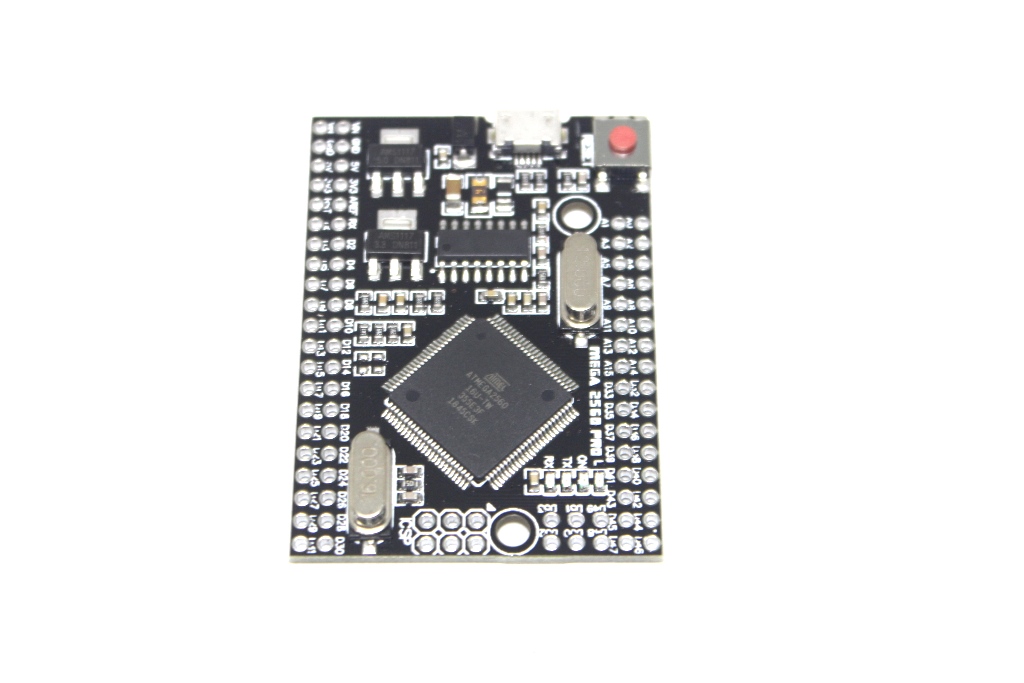

Mega 2560 PRO with CH340

https://www.hub360.cc/web/image/product.template/14459/image_1920?unique=bd1def9
(0 review)
7 sold in last 24 hours

₦ 30,697.67 30697.67 NGN ₦ 30,697.67 Tax Excluded

₦ 33,000.00 Tax Excluded

Not Available For Sale

(₦ 0.00 / Units)
2 people are viewing this right now

This combination does not exist.

This content will be shared across all product pages.

Contact Us
Description: The Mega 2560 PRO with CH340 is a compact and powerful development board based on the ATmega2560 microcontroller. Designed for advanced applications, it offers extensive I/O capabilities, high processing power, and reliable USB communication via the CH340 chip. This board is ideal for projects requiring multiple interfaces, large memory, and robust performance. Key Features:
  • Microcontroller: ATmega2560 with 54 digital I/O pins, 16 analog inputs, and 4 UARTs.
  • USB to Serial Communication: CH340 chip for reliable USB communication.
  • Compact Design: Smaller form factor compared to standard Mega 2560 boards.
  • High Memory Capacity: 256 KB Flash memory, 8 KB SRAM, and 4 KB EEPROM.
  • Multiple Interfaces: I2C, SPI, and serial interfaces for versatile connectivity.
  • Wide Operating Voltage Range: Supports 7-12V DC input voltage.
Technical Specifications:
  • Microcontroller: ATmega2560
  • Operating Voltage: 5V
  • Input Voltage (recommended): 7-12V
  • Digital I/O Pins: 54 (of which 15 provide PWM output)
  • Analog Input Pins: 16
  • DC Current per I/O Pin: 20 mA
  • Flash Memory: 256 KB (8 KB used by bootloader)
  • SRAM: 8 KB
  • EEPROM: 4 KB
  • Clock Speed: 16 MHz
  • USB Controller: CH340
  • Dimensions: Compact size for integration into various projects
Applications:
  • Robotics: Ideal for controlling multiple motors, sensors, and other peripherals.
  • Embedded Systems: Suitable for complex embedded system designs.
  • IoT Projects: Can be used in Internet of Things (IoT) applications requiring extensive I/O and memory.
  • Automation: Perfect for automation projects needing high processing power and multiple interfaces.
  • Prototyping: Great for prototyping advanced electronics and software applications.
Datasheet: For detailed technical information and specifications, please refer to the Mega 2560 PRO with CH340 Datasheet.

Technical Specifications:

  • Logic Family: CMOS
  • Number of Channels: 3
  • Switch Configuration: Single-Pole Double-Throw (SPDT)
  • Supply Voltage Range: 3V to 15V
  • “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
  • “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
  • Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
  • Maximum Operating Frequency: 40 MHz at V_DD = 10V

Applications:

  • Signal routing and switching
  • Analog and digital multiplexing
  • Audio and video signal processing
  • Data acquisition systems
  • Test equipment
