XD-41B TLC5615 10 bit DAC module

Price:

₦ 3,627.91

info@hub360.com.ng 07044715478
XD-41B TLC5615 10 bit DAC module
  2. Shop
  3. XD-41B TLC5615 10 bit DAC module
two pin tact switch 6*6*5mm
two pin tact switch 6*6*5mm
₦ 41.86
₦ 41.86

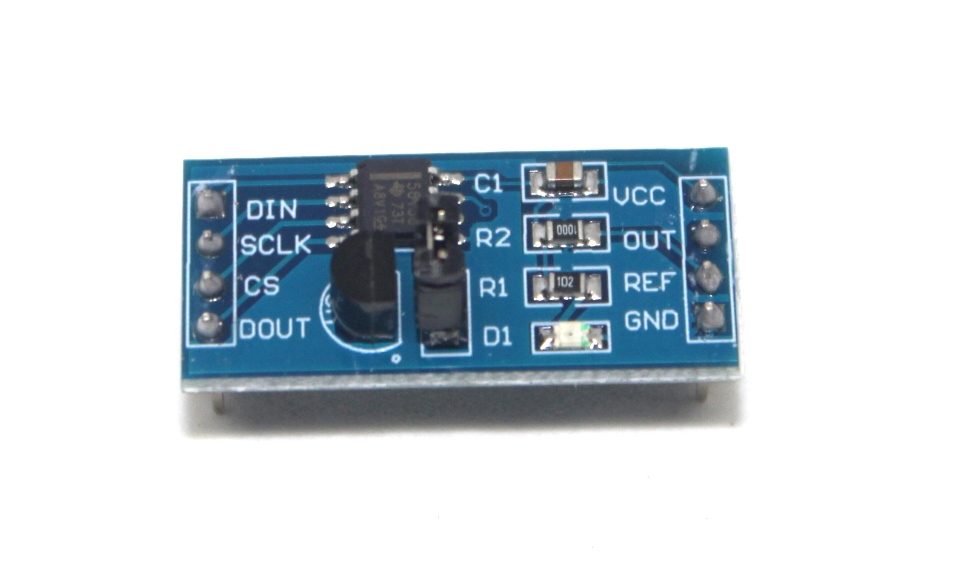

XD-41B TLC5615 10 bit DAC module

https://www.hub360.cc/web/image/product.template/14463/image_1920?unique=bd1def9
(0 review)
10 sold in last 24 hours

₦ 3,627.91 3627.91 NGN ₦ 3,627.91 Tax Excluded

₦ 3,900.00 Tax Excluded

Not Available For Sale

(₦ 0.00 / Units)
10 people are viewing this right now

This combination does not exist.

This content will be shared across all product pages.

Contact Us
Description: The XD-41B TLC5615 is a 10-bit digital-to-analog converter (DAC) module designed to provide accurate and stable analog output from digital signals. Utilizing the TLC5615 DAC chip, this module offers precise analog signal generation suitable for various electronic and measurement applications. Key Features:
  • TLC5615 DAC Chip: Provides 10-bit digital-to-analog conversion with high precision.
  • High Resolution: Delivers accurate analog output with 10-bit resolution.
  • Compact Design: Facilitates easy integration into different electronic systems.
  • Low Power Consumption: Suitable for low-power applications.
Technical Specifications:
  • DAC Chip: TLC5615
  • Resolution: 10-bit digital-to-analog conversion
  • Output Voltage Range: Typically 0V to 5V DC
  • Power Supply: Typically 5V DC
  • Interface: Digital input for signal conversion
  • Dimensions: Compact module size for ease of integration
Applications:
  • Signal Generation: Ideal for generating precise analog signals from digital inputs.
  • Audio Systems: Suitable for producing analog audio signals from digital sources.
  • Measurement Systems: Converts digital measurements into analog signals for analysis.
  • Embedded Systems: Integrates seamlessly with microcontrollers and other digital systems.
Datasheet: For detailed technical information and specifications, please refer to the TLC5615 Datasheet.

Technical Specifications:

  • Logic Family: CMOS
  • Number of Channels: 3
  • Switch Configuration: Single-Pole Double-Throw (SPDT)
  • Supply Voltage Range: 3V to 15V
  • “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
  • “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
  • Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
  • Maximum Operating Frequency: 40 MHz at V_DD = 10V

Applications:

  • Signal routing and switching
  • Analog and digital multiplexing
  • Audio and video signal processing
  • Data acquisition systems
  • Test equipment
