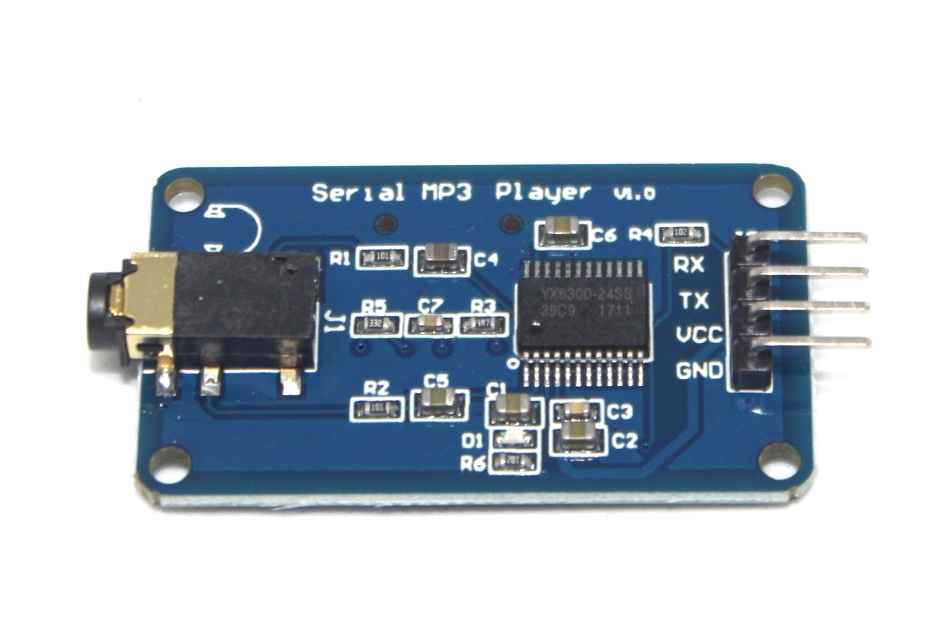

YX6300 Serial MP3 play module
This content will be shared across all product pages.
Description:
The YX6300 Serial MP3 Play Module is a versatile audio module designed for playing MP3 files stored on an SD card. It is ideal for embedded systems and projects requiring audio playback functionality. With its serial communication interface, it can be easily controlled by microcontrollers and development boards.
Key Features:
- Serial Communication: Simple UART interface for easy control.
- MP3 Playback: Supports MP3 file format for audio playback.
- SD Card Slot: Onboard slot for SD card storage of audio files.
- Multiple Control Modes: Supports command-based control for play, pause, stop, and volume adjustments.
- Compact Design: Small form factor for easy integration into projects.
- Built-in Amplifier: Directly drives speakers for convenient audio output.
- Operating Voltage: Typically 3.3V to 5V DC
- Communication Interface: UART (TX/RX)
- Supported Audio Format: MP3
- Storage Medium: SD card
- Dimensions: Compact module size for various applications
- Weight: Lightweight for minimal impact on device performance
- Embedded Systems: Add audio playback capabilities to embedded projects.
- Interactive Projects: Use in interactive installations and exhibits.
- Educational Kits: Perfect for teaching audio control and playback in electronics.
- DIY Projects: Ideal for custom electronics and hobbyist projects.
- Automation Systems: Implement audio alerts and messages in automated systems.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
