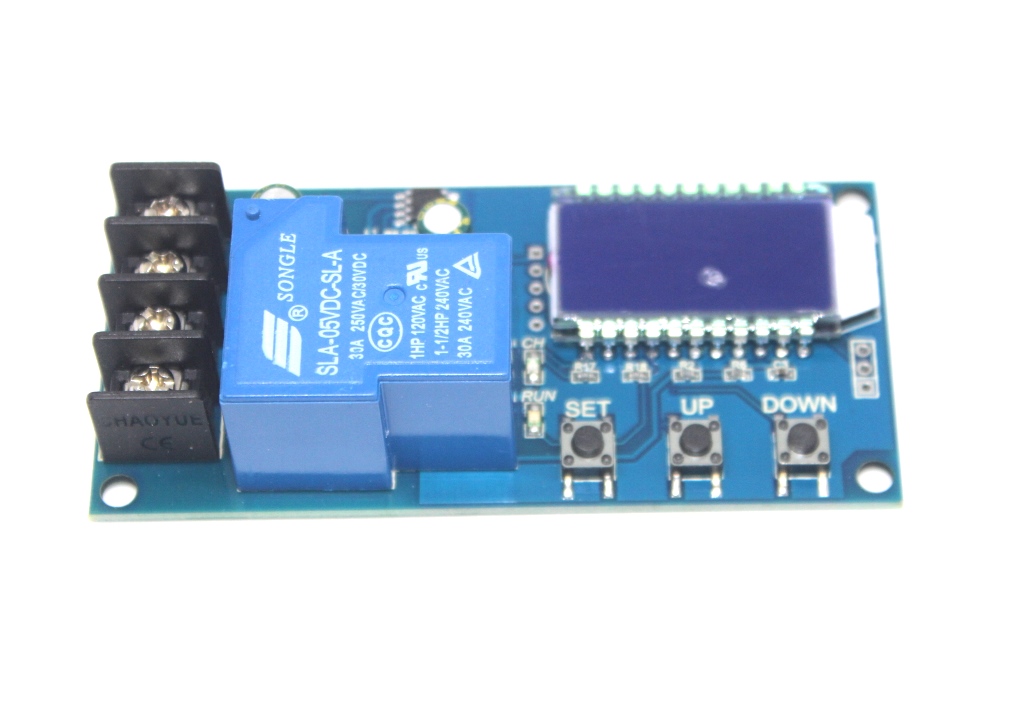

XY-L30A Battery overcharge protection and control module

https://www.hub360.cc/web/image/product.template/14467/image_1920?unique=bd1def9
(0 review)
9 sold in last 24 hours

₦ 9,767.44 9767.44 NGN ₦ 9,767.44 Tax Excluded

₦ 10,500.00 Tax Excluded

Not Available For Sale

(₦ 0.00 / Units)
2 people are viewing this right now

This combination does not exist.

This content will be shared across all product pages.

Contact Us
Description: The XY-L30A Battery Overcharge Protection and Control Module is designed to safeguard lithium-ion and lithium-polymer batteries from overcharging and over-discharging. This module ensures battery longevity and safety by managing charging cycles and protecting against excessive voltage and current. Key Features:
  • Overcharge Protection: Prevents the battery from charging beyond its maximum voltage, safeguarding against potential damage.
  • Over-discharge Protection: Ensures the battery does not discharge below its minimum voltage, which can prolong battery life.
  • Charge Control: Regulates the charging process to maintain safe battery operation.
  • LED Indicators: Provides visual feedback for charging status and protection activation.
  • Compact Design: Easy to integrate into various battery-powered applications.
Technical Specifications:
  • Operating Voltage: Typically 3.2V to 4.2V per cell
  • Maximum Charge Voltage: 4.2V per cell
  • Minimum Discharge Voltage: 2.5V per cell
  • Charge Current: Up to 3A (varies by model)
  • Discharge Current: Up to 3A (varies by model)
  • Dimensions: Compact size suitable for integration into battery packs
Applications:
  • Battery Packs: Protects lithium-ion and lithium-polymer batteries in various battery packs.
  • Consumer Electronics: Used in devices requiring reliable battery protection.
  • DIY Projects: Ideal for hobbyists working with rechargeable battery systems.
  • Power Tools: Ensures safety and longevity in battery-operated power tools.
Datasheet: For detailed technical information and specifications, please refer to the XY-L30A Battery Overcharge Protection and Control Module Datasheet.

Technical Specifications:

  • Logic Family: CMOS
  • Number of Channels: 3
  • Switch Configuration: Single-Pole Double-Throw (SPDT)
  • Supply Voltage Range: 3V to 15V
  • “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
  • “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
  • Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
  • Maximum Operating Frequency: 40 MHz at V_DD = 10V

Applications:

  • Signal routing and switching
  • Analog and digital multiplexing
  • Audio and video signal processing
  • Data acquisition systems
  • Test equipment
