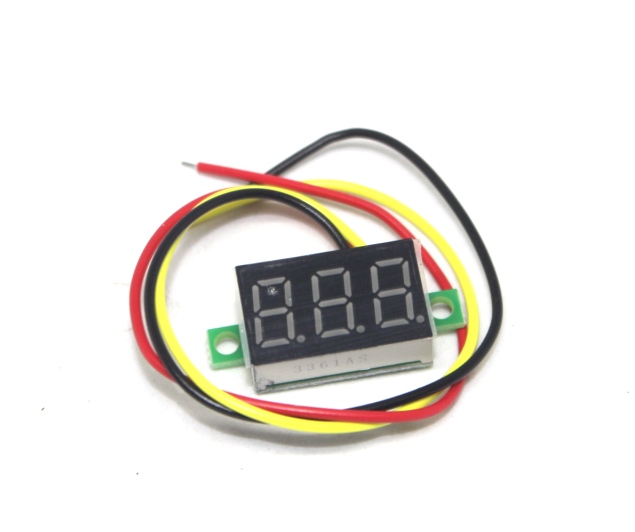

0.36 inch 0-32VDC voltmeter
This content will be shared across all product pages.
Description:
The 0.36 inch 0-32VDC Voltmeter is a compact digital display module designed to measure and display DC voltage. Its small size and clear LED display make it ideal for various applications, including monitoring battery voltage and other low-voltage DC systems.
Key Features:
- Clear Digital Display: 0.36-inch LED display for easy reading.
- Wide Voltage Range: Measures DC voltage from 0 to 32V.
- Compact Size: Fits into small spaces for versatile use.
- Easy to Install: Simple connections for quick setup.
- Low Power Consumption: Efficient operation with minimal power draw.
- Voltage Range: 0-32V DC
- Display Type: 0.36-inch LED
- Accuracy: ±1% (typical)
- Operating Voltage: Typically 4-30V DC
- Dimensions: Compact design for easy integration
- Weight: Lightweight for minimal impact on installation
- Color: LED display available in red, green, blue, etc.
- Battery Monitoring: Keep track of battery voltage in various applications.
- DIY Projects: Use in custom electronic projects for voltage monitoring.
- Power Supply Testing: Verify output voltage of power supplies.
- Automotive: Monitor vehicle battery voltage and charging systems.
- Industrial: Use in control panels and other monitoring systems.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
