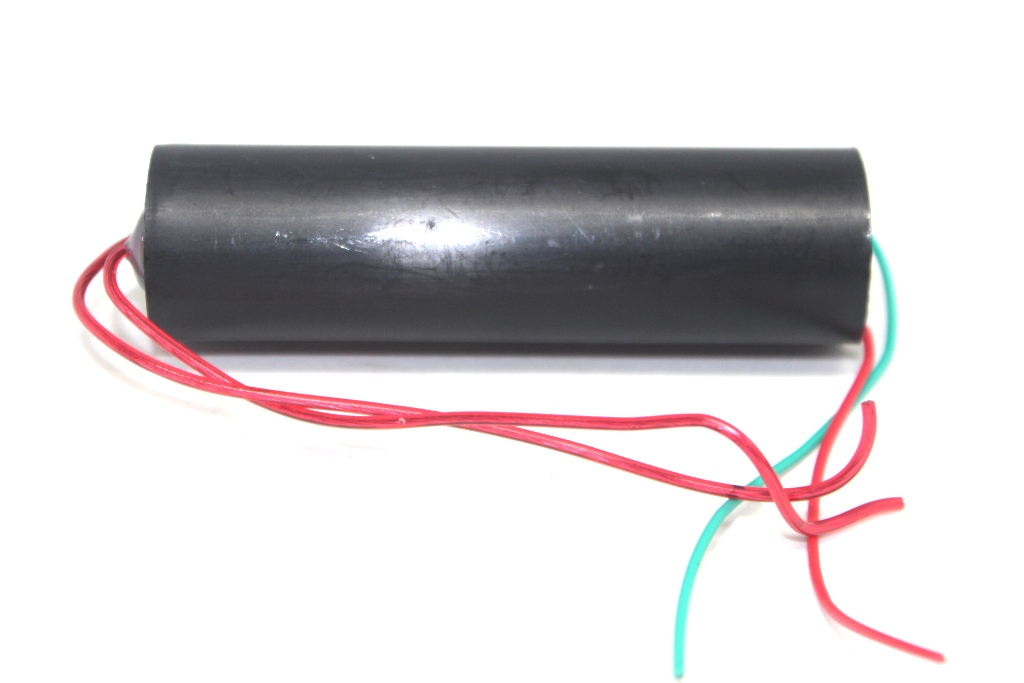

High voltage arc generator 3-6v to 800-1000KV
This content will be shared across all product pages.
Description:
The High Voltage Arc Generator is a compact module designed to transform a low DC voltage input of 3-6V to an extremely high voltage output ranging from 800KV to 1000KV. This module is commonly used for scientific experiments, high-voltage ignition, and educational demonstrations.
Key Features:
- High Voltage Output: Converts 3-6V DC input to 800KV-1000KV output.
- Compact and Lightweight: Easy to integrate into various applications.
- Simple Operation: Requires only a low DC voltage input to produce a high voltage arc.
- Durable Construction: Built to withstand high voltage outputs for extended use.
- Versatile Applications: Suitable for ignition systems, scientific experiments, and educational purposes.
- Input Voltage: 3-6V DC
- Output Voltage: 800KV-1000KV
- Current Consumption: Depends on input voltage and load
- Dimensions: Compact module size for easy integration
- Weight: Lightweight for minimal impact on device performance
- Ignition Systems: Used in high-voltage ignition circuits.
- Scientific Experiments: Ideal for experiments requiring high voltage arcs.
- Educational Demonstrations: Demonstrates principles of high voltage and arcing.
- DIY Projects: Suitable for hobbyist projects involving high voltage applications.
- High Voltage Testing: Useful for testing insulation and other high voltage components.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
