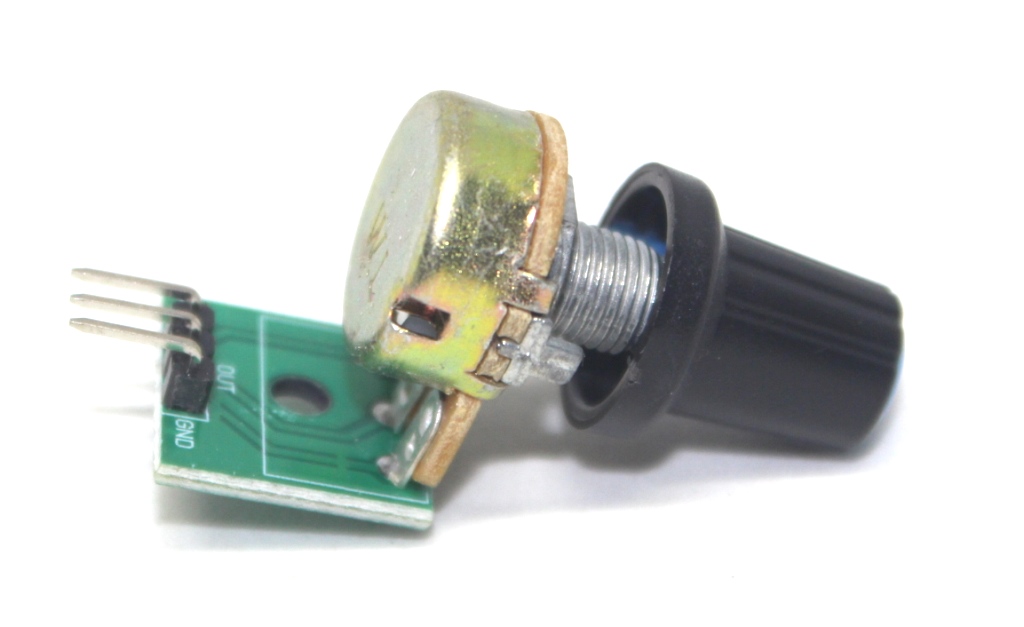

10K potentiometer module
This content will be shared across all product pages.
Description:
The 10K Potentiometer Module is a versatile and adjustable resistor module that provides variable resistance for a wide range of applications. It is commonly used in electronic projects for tuning and calibration, providing precise control over voltage and current in circuits.
Key Features:
- Adjustable Resistance: Provides a variable resistance from 0 to 10K ohms.
- Easy to Use: Simple integration into various electronic projects.
- High Precision: Allows for fine-tuning and precise control.
- Compact Design: Small and lightweight for convenient use in limited spaces.
- Durable Construction: Robust and reliable for long-term use.
- Resistance Range: 0 to 10K ohms
- Operating Voltage: 3.3V to 5V DC
- Interface: 3-pin connector (VCC, GND, Output)
- Dimensions: Compact module size
- Weight: Lightweight for minimal impact on device performance
- Volume Control: Adjusting audio levels in amplifiers and sound systems.
- Brightness Control: Modulating the intensity of LEDs and display screens.
- Calibration: Fine-tuning sensors and other electronic components.
- Signal Adjustment: Modifying input signals in various electronic circuits.
- DIY Projects: Ideal for use in hobbyist and educational electronics.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
