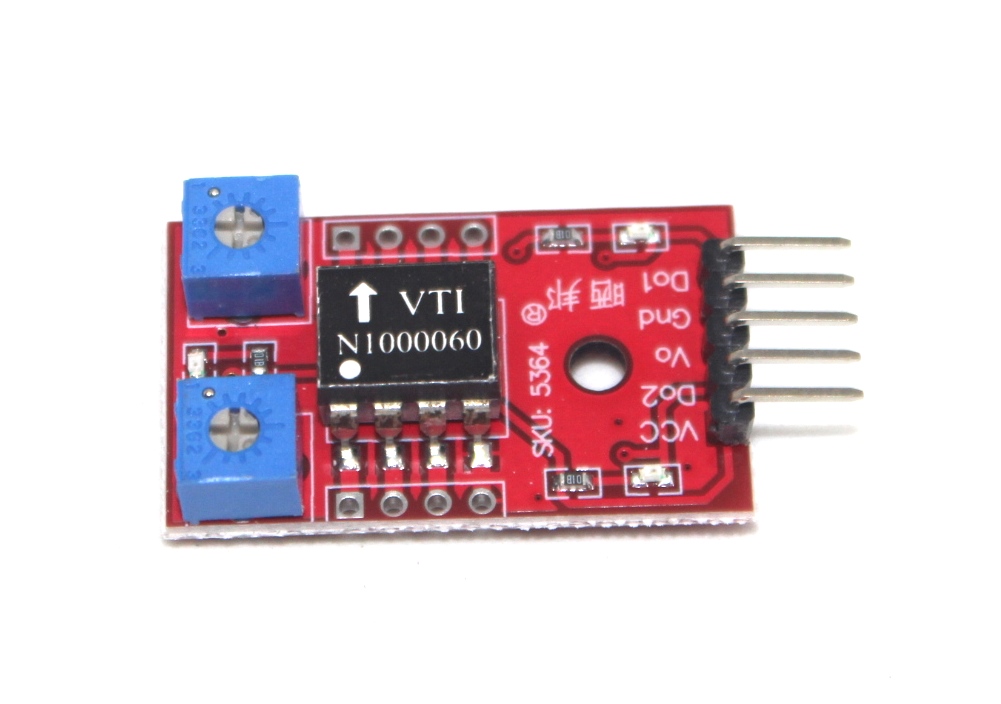

SCA60C single axis tilt sensor
This content will be shared across all product pages.
Description:
The SCA60C Single Axis Tilt Sensor is a precision sensor designed to measure tilt or inclination along a single axis. It provides accurate tilt angle data for various applications, making it ideal for use in automotive, industrial, and consumer electronics.
Key Features:
- High Precision: Accurate measurement of tilt angles.
- Single Axis Measurement: Focused on detecting tilt along one axis.
- Compact Design: Small size for easy integration into various devices.
- Robust Performance: Reliable operation in diverse environments.
- Low Power Consumption: Energy-efficient for battery-powered applications.
- Measurement Range: ±30°
- Supply Voltage: 5V DC
- Output: Analog voltage proportional to tilt angle
- Operating Temperature Range: -40°C to +85°C
- Dimensions: Compact module size
- Weight: Lightweight for minimal impact on device performance
- Automotive: Vehicle leveling and stability control.
- Industrial: Machinery tilt monitoring and control.
- Consumer Electronics: Smartphones, cameras, and gaming controllers.
- Construction: Monitoring the tilt of structures and equipment.
- Robotics: Ensuring balanced movement and operation.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
