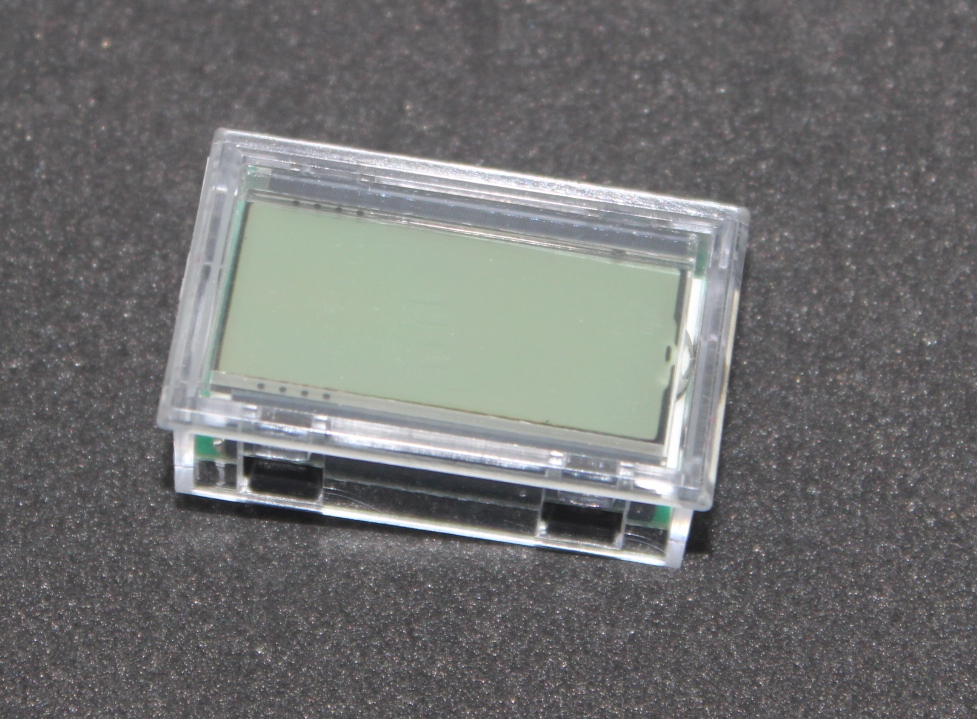

EGS002 EG8010 LCD display sine wave driver board
This content will be shared across all product pages.
Description:
The EGS002 EG8010 LCD Display Sine Wave Driver Board is a versatile and efficient module designed to generate pure sine wave signals. This board is suitable for inverter applications, motor control, and various other applications requiring precise sine wave generation. It comes with an LCD display for easy monitoring and control.
Key Features:
- Pure Sine Wave Output: Ensures high-quality, low-distortion sine wave generation.
- LCD Display: Provides real-time monitoring and control of output parameters.
- High Efficiency: Designed for efficient power conversion.
- Overload Protection: Built-in protection features to prevent damage from overloading.
- Compact and Lightweight: Easy to integrate into various applications.
- Multiple Control Modes: Supports various control modes for flexible operation.
- Input Voltage: 10V to 30V DC
- Output Voltage: Adjustable (depends on the design and components used)
- Output Frequency: 50Hz or 60Hz (selectable)
- Control Chip: EG8010
- Output Waveform: Pure sine wave
- Display: LCD screen for monitoring and control
- Efficiency: High efficiency for better performance and lower heat generation
- Dimensions: Compact module size for easy integration
- Weight: Lightweight for minimal impact on device performance
- Inverters: Ideal for pure sine wave inverter applications.
- Motor Control: Suitable for precise motor control requiring sine wave signals.
- Power Conversion: Use in power conversion systems for clean power output.
- Renewable Energy Systems: Integrate into solar or wind power systems for efficient energy conversion.
- DIY Projects: Perfect for hobbyists and DIY projects requiring sine wave generation.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
