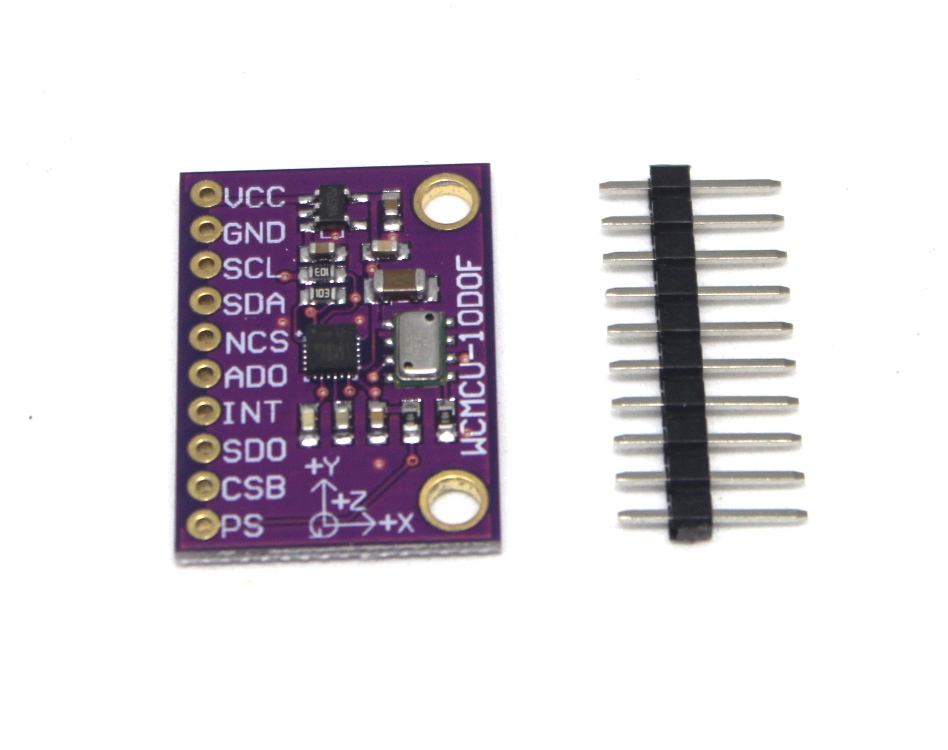

MCU-117 MCU 10DOF MPU9250/MS5611 9 axis 10 DOF module
This content will be shared across all product pages.
Description
The MCU-117 10DOF module combines the MPU9250 9-axis sensor and the MS5611 barometric pressure sensor. This module is ideal for applications requiring precise motion tracking, orientation sensing, and altitude measurement.Key Features
- MPU9250 Sensor: Combines a 3-axis gyroscope, a 3-axis accelerometer, and a 3-axis magnetometer.
- MS5611 Sensor: High-resolution barometric pressure sensor for accurate altitude measurement.
- I2C Interface: Simplifies integration with microcontrollers and other I2C-enabled devices.
- Low Power Consumption: Ideal for battery-operated applications.
- Compact Design: Easy to integrate into various projects.
Technical Specifications
- MPU9250 Sensor:
- Gyroscope Range: ±250, ±500, ±1000, ±2000 °/s
- Accelerometer Range: ±2, ±4, ±8, ±16 g
- Magnetometer Range: ±4800 µT
- MS5611 Sensor:
- Pressure Range: 10 to 1200 mbar
- Altitude Resolution: 10 cm
- Operating Voltage: 3.3V to 5V DC
- Communication Interface: I2C
Applications
- Drones and UAVs for stabilization and navigation
- Robotics for motion tracking and orientation sensing
- Wearable devices for fitness and health monitoring
- Weather stations for accurate altitude measurement
- Any application requiring precise motion and altitude sensing
Datasheet
For detailed technical information, please refer to the MPU9250 and MS5611 datasheets.Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
