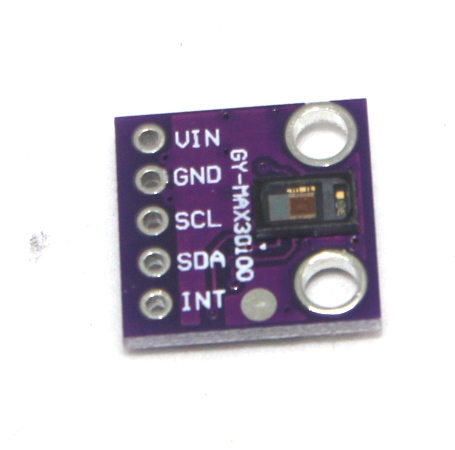

GY-MAX30102 Heart rate/oxygen concentration sensor module

https://www.hub360.cc/web/image/product.template/14486/image_1920?unique=bd1def9
(0 review)
4 sold in last 24 hours

₦ 3,255.81 3255.81 NGN ₦ 3,255.81 Tax Excluded

₦ 3,500.00 Tax Excluded

Not Available For Sale

(₦ 0.00 / Units)
5 people are viewing this right now

This combination does not exist.

This content will be shared across all product pages.

Contact Us
Description: The GY-MAX30102 is a heart rate and oxygen concentration sensor module designed for accurate and real-time measurement of heart rate and blood oxygen levels. This compact module integrates the MAX30102 sensor, which uses optical technology to monitor vital signs. Key Features:
  • Heart Rate Measurement: Provides accurate heart rate monitoring through pulse oximetry.
  • Oxygen Concentration Measurement: Measures blood oxygen saturation levels (SpO2).
  • Integrated MAX30102 Sensor: Combines photodetectors and LEDs for precise measurements.
  • I2C Communication: Allows easy interfacing with microcontrollers and development boards.
  • Low Power Consumption: Designed for energy-efficient operation, ideal for wearable devices.
  • Compact and Lightweight: Suitable for integration into various electronic projects and devices.
Technical Specifications:
  • Sensor: MAX30102
  • Measurement Parameters: Heart rate (BPM), Blood oxygen saturation (SpO2)
  • Operating Voltage: 1.8V to 3.3V DC
  • Communication Interface: I2C
  • Current Consumption: Low power (typically 0.8mA in operation)
  • Operating Temperature: -40°C to +85°C
  • Dimensions: Compact module size (consult datasheet for exact dimensions)
Applications:
  • Wearable Health Devices: Monitors heart rate and oxygen levels in fitness trackers and smartwatches.
  • Medical Monitoring Equipment: Integrates into health monitoring systems for real-time vital signs tracking.
  • Sports and Fitness: Provides data for performance tracking and health management.
  • Personal Health Monitoring: Suitable for consumer electronics aimed at health and wellness.
Datasheet: For detailed technical information and specifications, please refer to the GY-MAX30102 Heart Rate/Oxygen Concentration Sensor Module Datasheet.

Technical Specifications:

  • Logic Family: CMOS
  • Number of Channels: 3
  • Switch Configuration: Single-Pole Double-Throw (SPDT)
  • Supply Voltage Range: 3V to 15V
  • “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
  • “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
  • Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
  • Maximum Operating Frequency: 40 MHz at V_DD = 10V

Applications:

  • Signal routing and switching
  • Analog and digital multiplexing
  • Audio and video signal processing
  • Data acquisition systems
  • Test equipment
