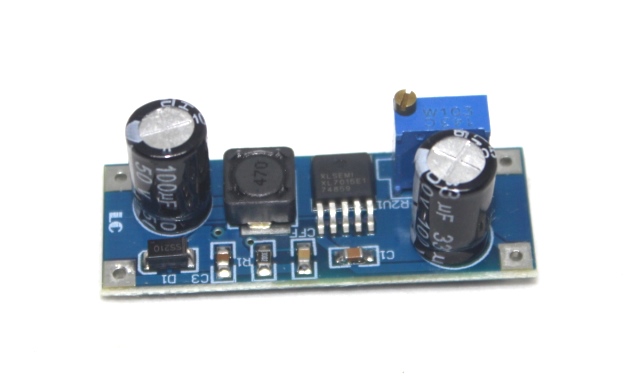

XL7015 5-80VDC DC-DC Buck Module

https://www.hub360.cc/web/image/product.template/14487/image_1920?unique=bd1def9
(0 review)
4 sold in last 24 hours

₦ 2,046.51 2046.51 NGN ₦ 2,046.51 Tax Excluded

₦ 2,200.00 Tax Excluded

Not Available For Sale

(₦ 0.00 / Units)
10 people are viewing this right now

This combination does not exist.

This content will be shared across all product pages.

Contact Us
Description: The XL7015 DC-DC Buck Module is a versatile power supply module designed for stepping down high input voltages to lower, stable output voltages. It is suitable for applications requiring reliable power conversion with a wide input voltage range. Key Features:
  • Wide Input Voltage Range: Accommodates input voltages from 5V to 80V DC.
  • Adjustable Output Voltage: Allows output voltage adjustment to meet specific needs.
  • High Efficiency: Provides efficient power conversion with minimal energy loss.
  • Compact Design: Space-saving module suitable for various applications.
  • Overcurrent Protection: Built-in protection to prevent damage from excessive current.
  • Thermal Protection: Includes thermal shutdown features to prevent overheating.
Technical Specifications:
  • Input Voltage Range: 5V to 80V DC
  • Output Voltage Range: Adjustable, typically 1.25V to 60V DC
  • Output Current: Up to 3A (depends on cooling and input conditions)
  • Efficiency: Up to 95% (varies with input and output conditions)
  • Operating Temperature: -40°C to +85°C
  • Dimensions: Compact size (consult datasheet for exact dimensions)
Applications:
  • Power Supply: Converts high voltage DC to stable lower voltage DC for various electronic projects.
  • Battery Power Management: Suitable for battery-powered devices requiring voltage regulation.
  • LED Drivers: Powers LED arrays or other components requiring regulated voltage.
  • Robotics and Automation: Provides stable power to robotic systems or automation equipment.
Datasheet: For detailed technical specifications and performance characteristics, please refer to the XL7015 DC-DC Buck Module Datasheet.

Technical Specifications:

  • Logic Family: CMOS
  • Number of Channels: 3
  • Switch Configuration: Single-Pole Double-Throw (SPDT)
  • Supply Voltage Range: 3V to 15V
  • “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
  • “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
  • Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
  • Maximum Operating Frequency: 40 MHz at V_DD = 10V

Applications:

  • Signal routing and switching
  • Analog and digital multiplexing
  • Audio and video signal processing
  • Data acquisition systems
  • Test equipment
