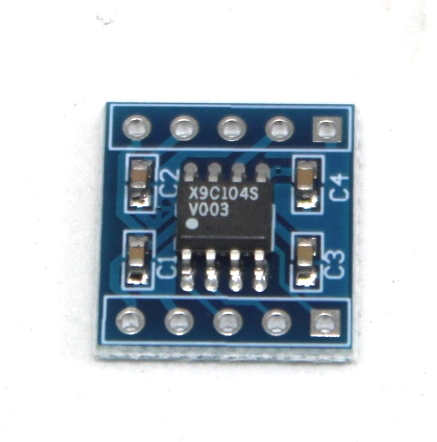

X9C104 digital potentiometer
This content will be shared across all product pages.
Description:
The X9C104 is a solid-state digital potentiometer with a 100kΩ resistance range. It features a three-wire serial interface and offers 100 wiper tap points. The device’s resistance settings are stored in non-volatile memory, making it suitable for applications requiring precise and reliable resistance adjustments.
Key Features:
- Solid-State Design: No mechanical parts, enhancing durability and reliability.
- Three-Wire Serial Interface: Facilitates easy communication with digital systems.
- 100 Wiper Tap Points: Allows for fine adjustment of resistance.
- Non-Volatile Memory: Wiper position retained even after power-off.
- Temperature Compensation: Stable performance across a wide temperature range.
- Low Power Consumption:
- VCC: 5V
- Active Current: 3mA maximum
- Standby Current: 750µA maximum
- High Reliability:
- Endurance: 100,000 data changes per bit
- Data Retention: 100 years
- Resistance Value: 100kΩ
- Package Options:
- 8-pin SOIC
- 8-pin PDIP
- RoHS Compliant: Lead-free versions available.
- Type: Solid-State Digital Potentiometer
- Interface: Three-Wire Serial
- Number of Wiper Taps: 100
- Temperature Range: -40°C to +85°C
- Operating Voltage: 5V DC
- Audio Control: Digital volume control and tone adjustment.
- Calibration: Precision calibration for various electronic systems.
- Signal Processing: Adjustable resistance in signal conditioning circuits.
- Microcontroller Projects: Programmable resistance control in embedded systems.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
