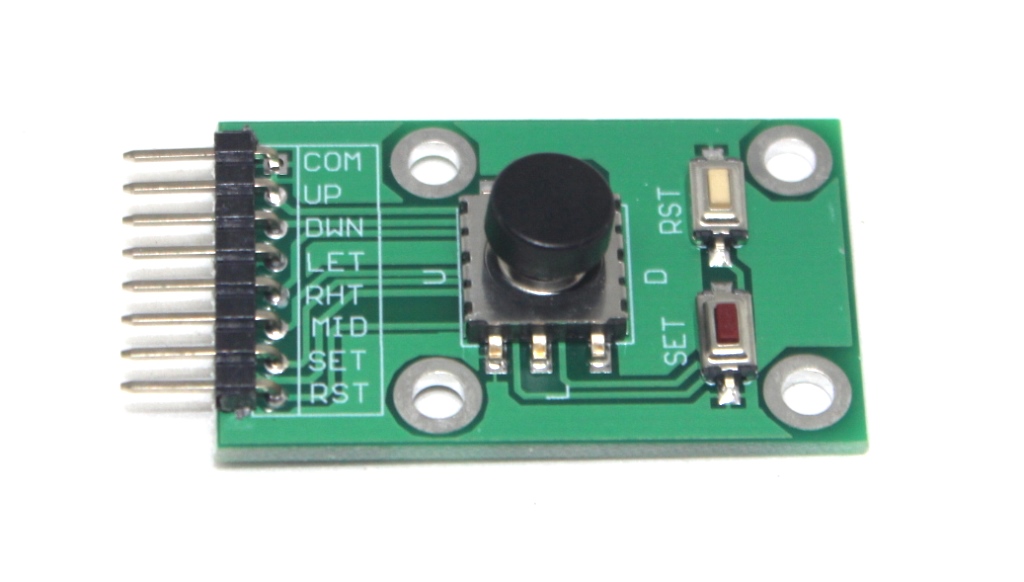

5 direction button switch module
This content will be shared across all product pages.
Description:
The 5 Direction Button Switch Module is a versatile input device that allows for multi-directional control with a single component. It features a central button and four directional buttons (up, down, left, right), making it ideal for applications requiring navigation or control input in multiple directions.
Key Features:
- Multi-directional Control: Includes five buttons (one central and four directional) for comprehensive control.
- Compact Design: Suitable for space-constrained applications.
- Durable Construction: Built for long-lasting performance and reliability.
- Easy Integration: Simple connection to microcontrollers or development boards.
- High Sensitivity: Provides responsive input with minimal actuation force.
- Button Configuration: 5 buttons (central + 4 directional)
- Operating Voltage: Typically 3.3V to 5V DC
- Current Rating: Low current draw per button (typically in milliamps)
- Contact Resistance: Low resistance for reliable input detection
- Dimensions: Compact size for various applications
- Navigation Controls: Suitable for use in devices requiring directional navigation, such as menus or user interfaces.
- Remote Controls: Ideal for remote control applications where multi-directional input is needed.
- Gaming: Used in gaming controllers for directional movement control.
- User Interfaces: Applied in various electronic devices where user input is required.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
