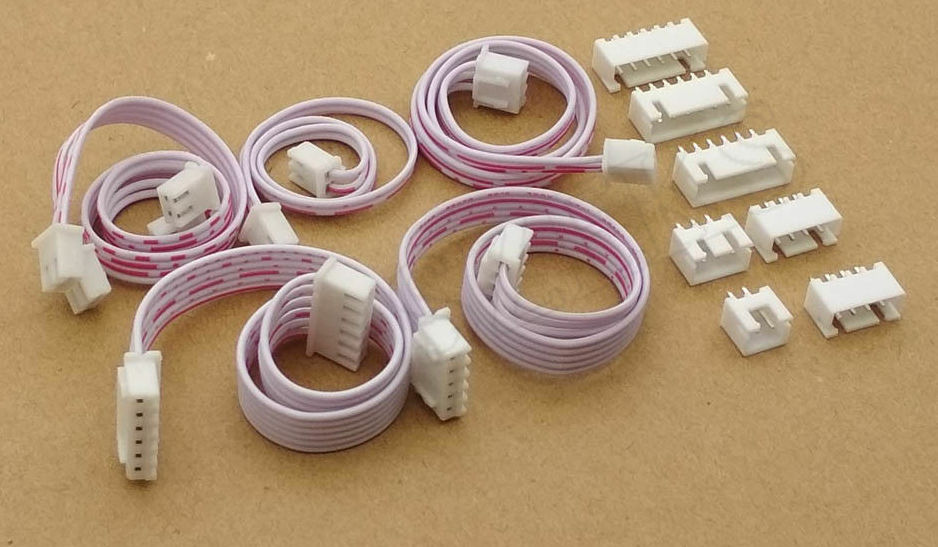

20cm XH-7P 7pin JST with socket
This content will be shared across all product pages.
Description:
The 20cm XH-7P 7-pin JST Cable with Socket is a compact and reliable cable assembly designed for connecting electronic components and modules. It features a 7-pin JST connector and socket, ensuring secure and stable connections for various applications in electronics and robotics.
Key Features:
- Connector Type: 7-pin JST XH series for secure and stable connections.
- Cable Length: 20cm, providing flexibility for various setups.
- Durability: Constructed with high-quality materials for long-lasting performance.
- Compatibility: Suitable for a range of electronic components and modules requiring a 7-pin connection.
- Ease of Use: Pre-wired with socket for straightforward installation and integration.
- Connector Type: JST XH 7-pin
- Cable Length: 20cm
- Pin Pitch: 2.5mm
- Material: High-quality insulation and connectors
- Temperature Range: Typically -20°C to 80°C
- Current Rating: Suitable for standard electronic current loads
- Electronics Projects: Ideal for connecting sensors, actuators, and other components in DIY electronics and robotics projects.
- Prototyping: Useful in prototyping and development environments for secure connections.
- Modular Systems: Suitable for modular electronic systems and devices requiring a 7-pin JST connection.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
