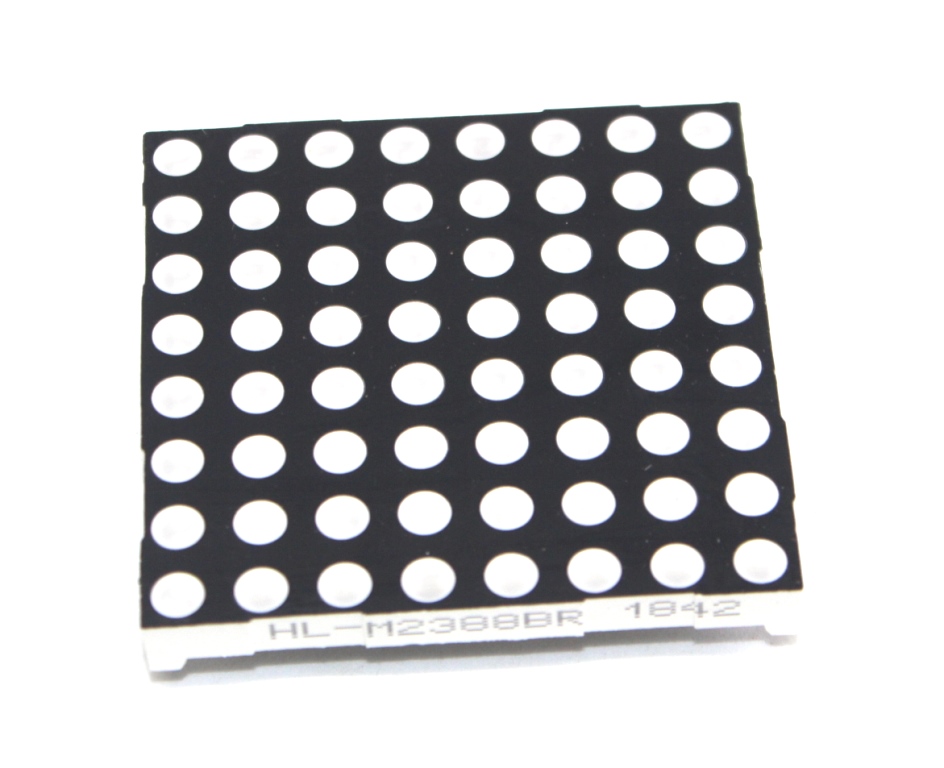

5mm 8*8 dot Matrix

https://www.hub360.cc/web/image/product.template/14498/image_1920?unique=bd1def9
(0 review)
9 sold in last 24 hours

₦ 2,604.65 2604.65 NGN ₦ 2,604.65 Tax Excluded

₦ 2,800.00 Tax Excluded

Not Available For Sale

(₦ 0.00 / Units)
5 people are viewing this right now

This combination does not exist.

This content will be shared across all product pages.

Contact Us
Description: The 5mm 8x8 Dot Matrix is a versatile LED display module designed for a wide range of applications, including text display, graphical displays, and status indicators. The matrix consists of 64 individual LEDs arranged in an 8x8 grid, providing bright and clear visual output. This module is ideal for use in digital clocks, scoreboards, message boards, and various electronic projects. Key Features:
  • Matrix Configuration: 8x8 grid of LEDs, offering a total of 64 LEDs
  • LED Size: 5mm diameter LEDs for bright and clear display
  • Display Type: Suitable for alphanumeric characters and simple graphics
  • Brightness: High brightness for visibility in various lighting conditions
  • Driver Compatibility: Compatible with common LED drivers and controllers for easy integration
  • Versatile Use: Can be used for creating dynamic visual effects, messages, and notifications
Technical Specifications:
  • Matrix Size: 8x8 (64 LEDs)
  • LED Diameter: 5mm
  • Operating Voltage: Typically 5V DC
  • Color: Typically single color (e.g., red, green, or blue)
  • Interface: Requires compatible LED driver/controller for operation
  • Dimensions: Compact design for easy integration into various projects
  • Weight: Lightweight for easy mounting
Applications:
  • Digital Displays: Used in digital clocks and scoreboards for clear numeric and text display
  • Message Boards: Ideal for scrolling or static messages in public or private displays
  • Decorative Lighting: Useful for creating visual effects and lighting patterns
  • Electronic Projects: Suitable for hobbyist projects involving LED display

Technical Specifications:

  • Logic Family: CMOS
  • Number of Channels: 3
  • Switch Configuration: Single-Pole Double-Throw (SPDT)
  • Supply Voltage Range: 3V to 15V
  • “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
  • “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
  • Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
  • Maximum Operating Frequency: 40 MHz at V_DD = 10V

Applications:

  • Signal routing and switching
  • Analog and digital multiplexing
  • Audio and video signal processing
  • Data acquisition systems
  • Test equipment
