MCU-9911 AK09911C 3 axis magnetometer

Price:

₦ 3,348.84

info@hub360.com.ng 07044715478
MCU-9911 AK09911C 3 axis magnetometer
  2. Shop
  3. MCU-9911 AK09911C 3 axis magnetometer
two pin tact switch 6*6*5mm
two pin tact switch 6*6*5mm
₦ 41.86
₦ 41.86

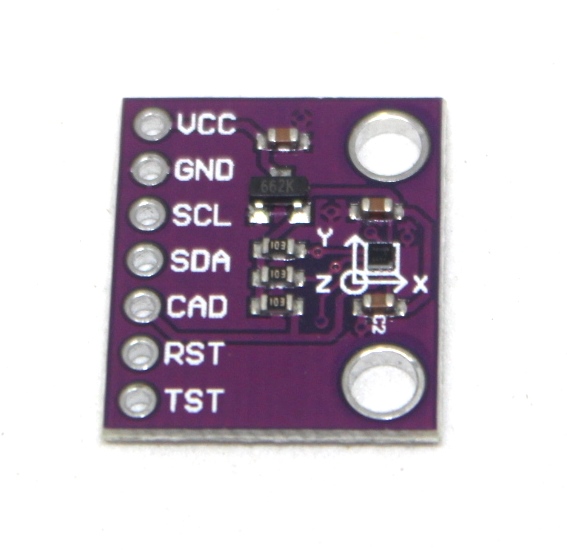

MCU-9911 AK09911C 3 axis magnetometer

https://www.hub360.cc/web/image/product.template/14502/image_1920?unique=bd1def9
(0 review)
10 sold in last 24 hours

₦ 3,348.84 3348.84 NGN ₦ 3,348.84 Tax Excluded

₦ 3,600.00 Tax Excluded

Not Available For Sale

(₦ 0.00 / Units)
4 people are viewing this right now

This combination does not exist.

This content will be shared across all product pages.

Contact Us
Description: The MCU-9911 AK09911C 3-Axis Magnetometer is a high-precision sensor module designed to measure magnetic fields in three dimensions. Utilizing the AK09911C integrated circuit, this magnetometer offers accurate and reliable magnetic field measurements, making it ideal for applications in navigation, motion sensing, and geomagnetic field mapping. Key Features:
  • Integrated Circuit: AK09911C for precise 3-axis magnetic field measurements
  • Measurement Range: Capable of detecting magnetic fields in three dimensions
  • Digital Output: Provides data via an I2C interface for easy integration with microcontrollers
  • High Sensitivity: Ensures accurate measurements of low magnetic fields
  • Compact Design: Space-saving module suitable for various applications
Technical Specifications:
  • Sensor: AK09911C
  • Interface: I2C (Addressable via specific pins)
  • Operating Voltage: Typically 2.4V to 3.6V DC
  • Measurement Range: ±4900 µT (microtesla)
  • Resolution: High resolution for detailed magnetic field detection
  • Dimensions: Compact size for easy integration into projects
  • Weight: Lightweight for minimal impact on device performance
Applications:
  • Navigation Systems: Used in GPS and compass applications for orientation and direction finding
  • Motion Tracking: Suitable for motion sensing in robotics and wearable devices
  • Geomagnetic Field Mapping: Useful in environmental studies and earth science applications
  • Electronic Compasses: Integrated into devices requiring accurate heading and orientation
Datasheet: For detailed technical information and specifications, please refer to the AK09911C Datasheet.

Technical Specifications:

  • Logic Family: CMOS
  • Number of Channels: 3
  • Switch Configuration: Single-Pole Double-Throw (SPDT)
  • Supply Voltage Range: 3V to 15V
  • “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
  • “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
  • Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
  • Maximum Operating Frequency: 40 MHz at V_DD = 10V

Applications:

  • Signal routing and switching
  • Analog and digital multiplexing
  • Audio and video signal processing
  • Data acquisition systems
  • Test equipment
