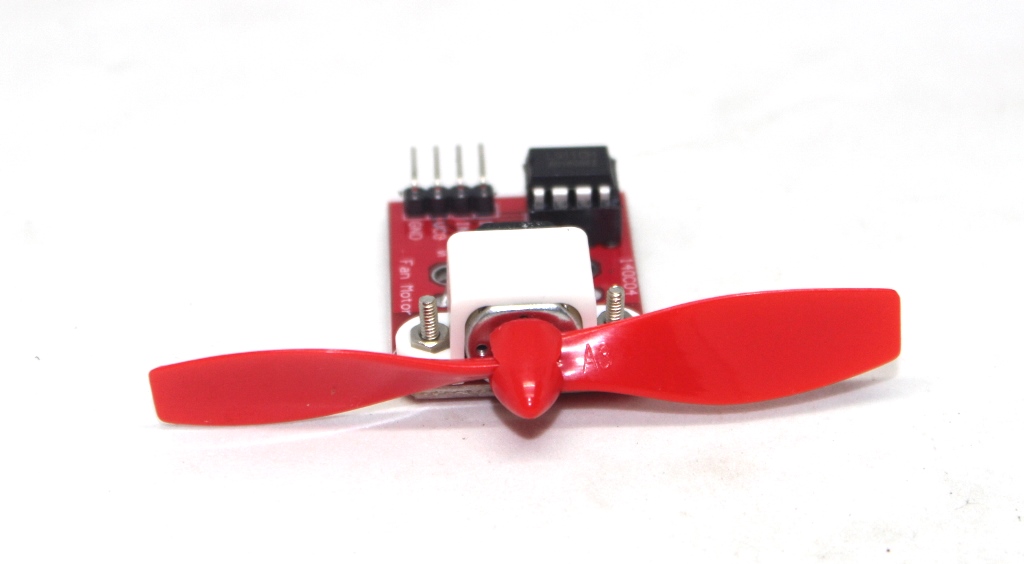

Fan Motor module
This content will be shared across all product pages.
Description:
The Fan Motor Module is a versatile and compact unit designed to drive and control small fan motors in various applications. This module provides efficient motor control, ensuring stable and reliable operation. It is ideal for use in cooling systems, ventilation, and other projects requiring controlled airflow.
Key Features:
- Efficient Motor Control: Provides stable and reliable control of fan motors.
- Compact Design: Small form factor for easy integration into various projects.
- Wide Voltage Range: Compatible with different power supply voltages.
- Protection Features: Includes overcurrent and thermal protection to ensure safe operation.
- User-Friendly Interface: Simple connections and controls for easy setup and operation.
- Input Voltage: Typically 5V to 12V DC
- Output Current: Maximum output current
- Control Interface: Digital or analog input for speed control
- Protection Features: Overcurrent and thermal protection
- Dimensions: Compact size for easy integration
- Weight: Lightweight design for minimal impact on overall system weight
- Cooling Systems: Drives fan motors in electronic cooling systems.
- Ventilation: Controls fans in ventilation systems for buildings and vehicles.
- DIY Projects: Suitable for hobbyist projects requiring fan control.
- Industrial Equipment: Used in machinery and equipment to manage heat dissipation.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
