Five way flame sensor
This content will be shared across all product pages.
Description:

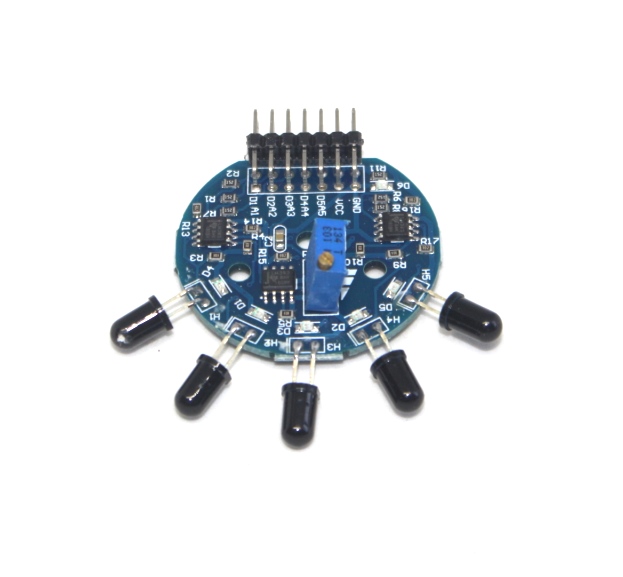

The Five-Way Flame Sensor module is designed for detecting flames or other light sources within the 760 nm to 1100 nm wavelength range. It is equipped with five independent sensors, allowing for a wide detection range and the ability to determine the direction of the flame source. This makes it ideal for fire-fighting robots, safety systems, and other applications requiring reliable flame detection.
Key Features:
- Multi-Directional Detection: Five independent sensors for a wide detection range and direction determination.
- High Sensitivity: Detects flames and light sources within the 760 nm to 1100 nm wavelength range.
- Digital and Analog Outputs: Provides both digital (0 or 1) and analog (voltage level) outputs for versatile integration.
- Adjustable Sensitivity: Potentiometer to adjust the sensitivity for different detection distances and conditions.
- LED Indicators: Visual indication of flame detection for easy debugging and monitoring.
- Wide Operating Voltage: Compatible with a range of voltages from 3.3V to 5V.
- Operating Voltage: 3.3V to 5V DC
- Detection Range: Up to 100 cm (varies with flame size and ambient light)
- Wavelength Range: 760 nm to 1100 nm
- Output Type: Digital and Analog
- Dimensions: Compact module size for easy integration into various projects
- Weight: Lightweight design for minimal impact on overall project weight
- Fire-Fighting Robots: Detection and direction sensing of flames for automated fire suppression.
- Safety Systems: Flame detection in industrial and residential safety systems.
- Security Systems: Monitoring for unauthorized flames or fire hazards.
- Home Automation: Integration into smart home systems for fire detection and alerting.
- Educational Projects: Learning about sensor technology and flame detection in DIY and educational kits.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
