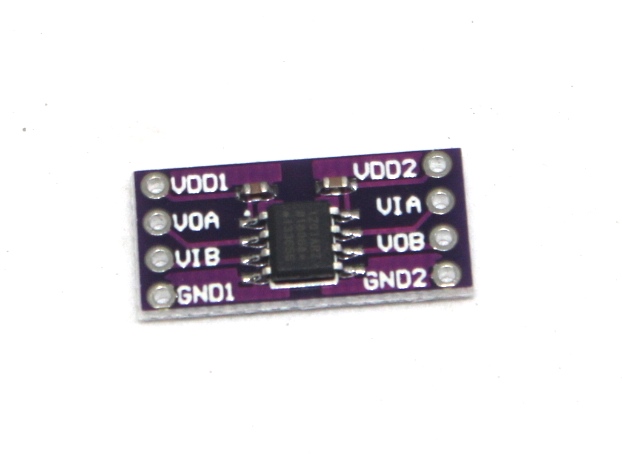

MCU1201 magnetic isolator
This content will be shared across all product pages.
Description:
The MCU1201 Magnetic Isolator is a high-performance isolation module designed for protecting sensitive electronic circuits from high voltage spikes and electromagnetic interference. By providing galvanic isolation, it ensures that noise and transient signals do not pass through, maintaining the integrity and performance of the connected circuits. This isolator is ideal for applications in industrial automation, power electronics, and communication systems.
Key Features:
- High Voltage Isolation: Provides robust isolation up to 5kV.
- Low Power Consumption: Efficient power usage for energy-sensitive applications.
- Wide Operating Temperature Range: Suitable for harsh industrial environments.
- Compact Design: Small form factor for easy integration into various projects.
- High Noise Immunity: Effective protection against electromagnetic interference (EMI) and voltage transients.
- Standard Pin Configuration: Easy to use with standard PCB layouts.
- Isolation Voltage: 5kV
- Operating Voltage: 3.3V to 5V DC
- Power Consumption: Low power design
- Operating Temperature Range: -40°C to +85°C
- Package Type: Compact module suitable for PCB mounting
- Dimensions: Standard size for ease of integration
- Weight: Lightweight for minimal impact on device design
- Industrial Automation: Isolation in control systems and communication interfaces.
- Power Electronics: Protects low voltage circuits in high voltage environments.
- Communication Systems: Ensures signal integrity in data transmission.
- Medical Devices: Provides safety isolation in patient-connected equipment.
- Consumer Electronics: Protects sensitive components from voltage spikes and noise.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
