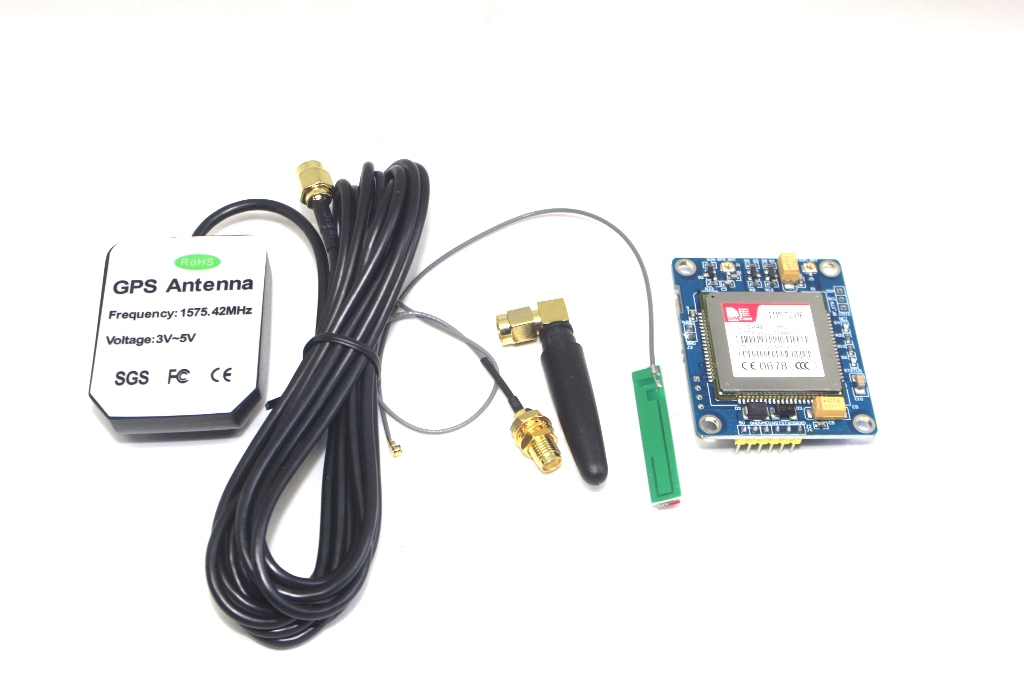

SIM5320E 3G GSM GPRS GPS SMS module
This content will be shared across all product pages.
Description:
The SIM5320E is a versatile 3G GSM GPRS GPS SMS module that provides robust wireless connectivity for a variety of applications. This module integrates 3G, GSM, GPRS, and GPS functionalities, making it suitable for applications requiring mobile communication, location tracking, and messaging services. It supports a wide range of frequencies, ensuring compatibility with networks worldwide.
Key Features:
- 3G GSM/GPRS Connectivity: Provides reliable mobile communication with high data rates.
- GPS Functionality: Enables accurate location tracking and navigation.
- SMS Support: Allows sending and receiving text messages.
- Wide Frequency Support: Compatible with multiple frequency bands for global use.
- Low Power Consumption: Efficient power usage for extended battery life in portable applications.
- Compact Design: Small form factor for easy integration into various projects and devices.
- Standard Interfaces: UART and USB interfaces for straightforward communication with microcontrollers and computers.
- Cellular Network Support:
- 3G: HSPA/WCDMA: 900/2100 MHz
- 2G: GSM/GPRS: 850/900/1800/1900 MHz
- GPS:
- Support for standalone GPS and A-GPS
- Fast and accurate positioning
- Data Rates:
- HSPA: Uplink up to 5.76 Mbps, Downlink up to 7.2 Mbps
- GPRS: Uplink and Downlink up to 85.6 kbps
- SMS:
- Text and PDU mode support
- Interfaces:
- UART
- USB 2.0
- Operating Voltage: 3.4V to 4.2V DC
- Dimensions: Compact module size for easy integration
- Weight: Lightweight for minimal impact on device design
- IoT Devices: Ideal for Internet of Things applications requiring mobile connectivity and GPS tracking.
- Telematics: Suitable for vehicle tracking and fleet management systems.
- Remote Monitoring: Perfect for remote data collection and monitoring in various industries.
- Wearable Devices: Can be used in wearable technology for location tracking and communication.
- Security Systems: Effective for security and surveillance applications with SMS alerts and GPS positioning.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
