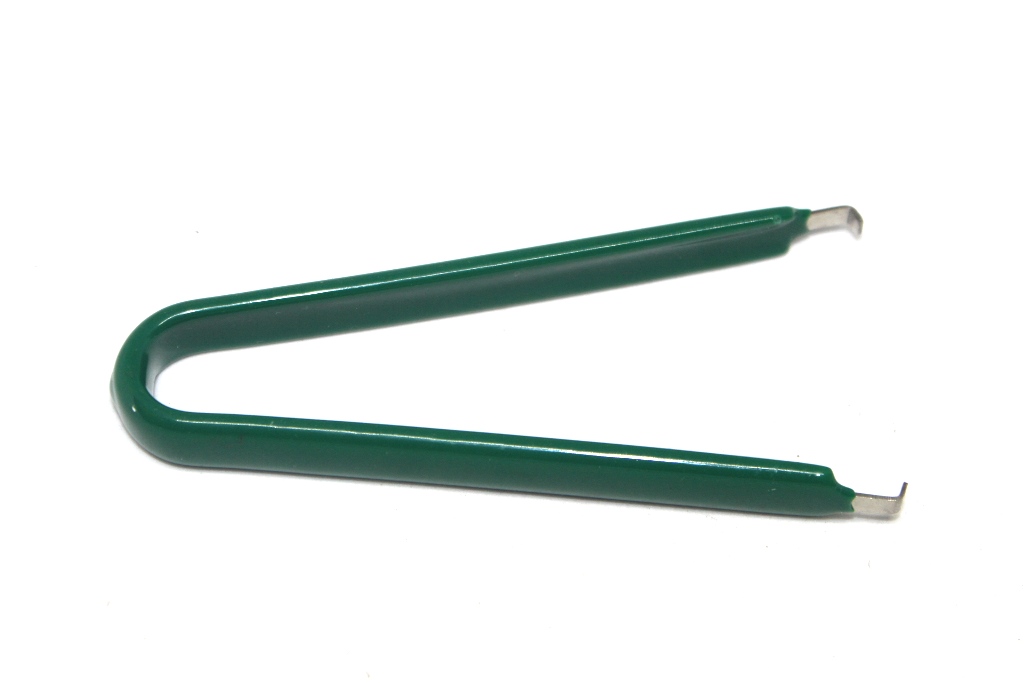

IC extractor/picker
This content will be shared across all product pages.
Description:
The IC Extractor/Picker is a specialized tool designed for the safe removal and insertion of integrated circuits (ICs) from circuit boards. It prevents damage to both the IC and the board during handling and is essential for tasks such as maintenance, repair, and prototyping.
Key Features:
- Ergonomic Design: Provides a comfortable grip and precise control for easy handling of ICs.
- Non-damaging: Extracts and picks ICs without causing harm to the components or the PCB.
- Versatile Compatibility: Suitable for various IC types, including DIP (Dual In-line Package), SOIC (Small Outline Integrated Circuit), and other package types.
- Precision Tips: Features fine tips or claws to securely grip and maneuver ICs.
- Durable Construction: Made from high-quality materials for long-lasting performance.
- Tool Type: IC Extractor/Picker
- Compatibility: Works with various IC package types (DIP, SOIC, etc.)
- Material: Typically made from anti-static plastic or metal for durability and safety
- Dimensions: Compact size for ease of use and storage
- Weight: Lightweight for comfortable handling
- Electronics Repair: Useful for removing faulty ICs and replacing them with new ones.
- Prototyping: Facilitates the easy interchange of ICs during the development and testing of electronic circuits.
- Maintenance: Assists in the servicing and upgrading of electronic devices and circuit boards.
- Educational Use: Ideal for use in electronics labs and learning environments.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
