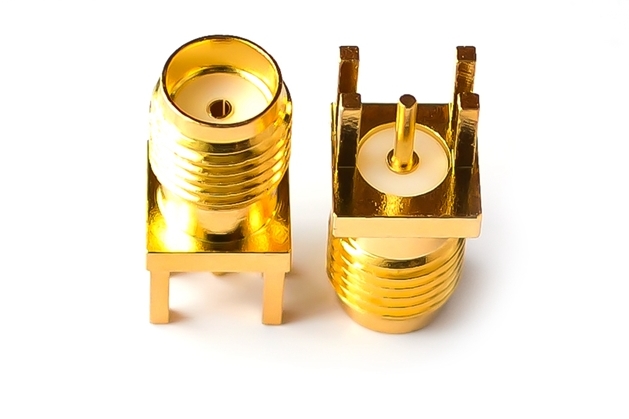

Female SMA socket
This content will be shared across all product pages.
Description:
The Female SMA Socket is a high-precision connector designed for RF (Radio Frequency) applications. It is commonly used to establish connections between devices and antennas in various communication systems, including wireless networks, satellite communications, and testing equipment.
Key Features:
- Female SMA Connector: Designed to interface with male SMA connectors for secure and reliable connections.
- High Frequency Performance: Suitable for applications requiring high-frequency signal transmission up to 18 GHz.
- Precision Design: Ensures minimal signal loss and maintains signal integrity.
- Robust Construction: Made from durable materials to ensure long-term performance and resistance to mechanical stress.
- Compact Form Factor: Small and lightweight, ideal for tight spaces and compact electronic devices.
- Connector Type: Female SMA
- Frequency Range: Typically up to 18 GHz
- Impedance: 50 ohms
- Material: Usually brass with gold or nickel plating
- Dimensions: Compact size suitable for various RF applications
- Weight: Lightweight for ease of use and integration
- RF and Microwave Systems: Connects antennas, transmitters, and receivers in RF and microwave applications.
- Testing and Measurement: Provides connections for test equipment in signal measurement setups.
- Networking Equipment: Used in high-frequency networking hardware for reliable signal transmission.
- Consumer Electronics: Integrates with consumer devices requiring RF connectivity.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
