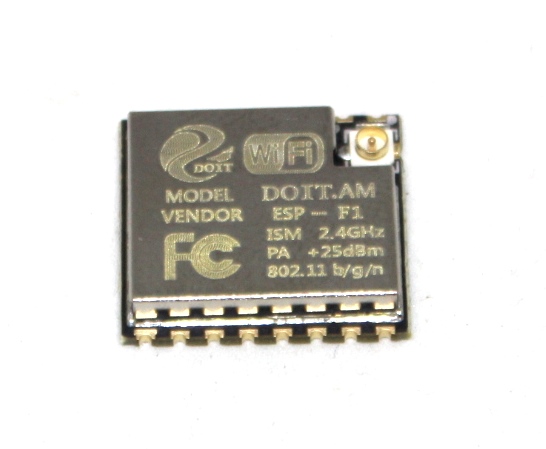

ESP8266 ESP-F1 Wifi module
This content will be shared across all product pages.
Description:
The ESP8266 ESP-F1 WiFi Module is a compact and highly integrated module designed for wireless communication applications. It features the ESP8266 chip, which provides WiFi connectivity and supports various network protocols. This module is suitable for embedding into electronic projects to enable wireless data transmission and reception.
Key Features:
- ESP8266 Chip: Provides reliable WiFi connectivity with support for various network protocols.
- Integrated Antenna: Simplifies design and reduces the need for external components.
- Compact Form Factor: Suitable for space-constrained applications.
- Built-in Flash Memory: For storing firmware and application code.
- Multiple Operating Modes: Supports station mode, access point mode, and station+access point mode.
- Low Power Consumption: Efficient power usage for battery-operated applications.
- Chip: ESP8266
- Frequency Range: 2.4 GHz ISM band
- WiFi Standard: 802.11 b/g/n
- Flash Memory: Typically 512 KB to 4 MB (check specific module for exact memory)
- Operating Voltage: 3.3V DC
- Operating Current: Low power consumption (varies with operating mode)
- Interface: UART (serial communication), GPIO
- Dimensions: Compact size for easy integration (refer to datasheet for exact dimensions)
- Weight: Lightweight for minimal impact on overall project design
- IoT Devices: Connects devices to the internet for smart home applications.
- Wireless Data Transmission: Enables wireless communication between devices.
- Embedded Systems: Integrates with microcontrollers for added WiFi functionality.
- Prototyping: Useful for developing and testing wireless applications.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
