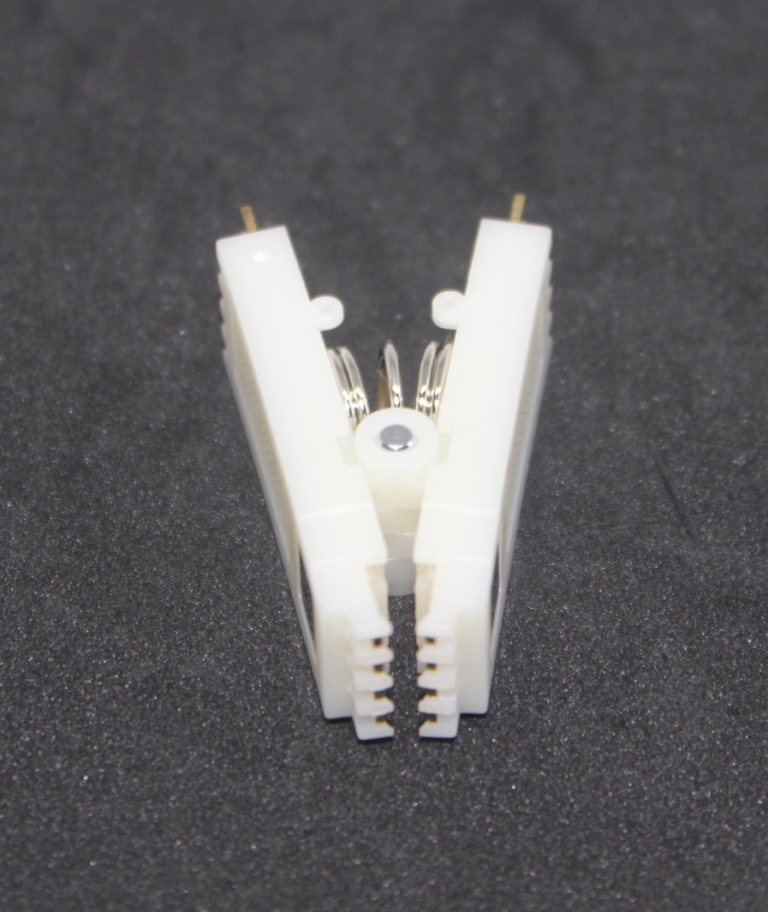

2.54mm gold plated 8pin IC Test Clip

Price:

₦ 17,674.42

info@hub360.com.ng 07044715478
2.54mm gold plated 8pin IC Test Clip
  2. Shop
  3. 2.54mm gold plated 8pin IC Test Clip
two pin tact switch 6*6*5mm
two pin tact switch 6*6*5mm
₦ 41.86
₦ 41.86

2.54mm gold plated 8pin IC Test Clip

https://www.hub360.cc/web/image/product.template/14522/image_1920?unique=bd1def9
(0 review)
7 sold in last 24 hours

₦ 17,674.42 17674.42 NGN ₦ 17,674.42 Tax Excluded

₦ 19,000.00 Tax Excluded

Not Available For Sale

(₦ 0.00 / Units)
10 people are viewing this right now

This combination does not exist.

This content will be shared across all product pages.

Contact Us
Description: The 2.54mm Gold Plated 8-Pin IC Test Clip is a versatile and reliable tool for making temporary connections to ICs during testing and debugging. Designed with precision and durability in mind, this test clip ensures secure and stable connections to IC pins, making it an essential accessory for engineers and technicians working with integrated circuits. Key Features:
  • Gold-Plated Contacts: Ensures excellent conductivity and corrosion resistance for reliable performance.
  • 8-Pin Design: Compatible with standard 8-pin ICs and sockets.
  • 2.54mm Pitch: Standard pitch for easy integration with common ICs and development boards.
  • Spring-Loaded Clip: Provides a secure grip on IC pins for stable connections.
  • Durable Construction: Made from high-quality materials for long-lasting use.
  • Easy to Use: Simple clip-on mechanism for quick and hassle-free connections.
Technical Specifications:
  • Contact Material: Gold-plated contacts for high conductivity and durability
  • Pin Count: 8 pins
  • Pitch: 2.54mm (0.1 inch)
  • Clip Type: Spring-loaded
  • Dimensions: Compact size for ease of handling and storage
  • Weight: Lightweight design for minimal impact on handling
Applications:
  • IC Testing: Ideal for temporary connections to IC pins during testing and debugging.
  • Prototyping: Useful in development and prototyping environments for easy access to IC pins.
  • Repair and Maintenance: Assists in troubleshooting and repairing electronic circuits.
  • Educational Use: Great tool for educational labs and training in electronics.

Technical Specifications:

  • Logic Family: CMOS
  • Number of Channels: 3
  • Switch Configuration: Single-Pole Double-Throw (SPDT)
  • Supply Voltage Range: 3V to 15V
  • “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
  • “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
  • Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
  • Maximum Operating Frequency: 40 MHz at V_DD = 10V

Applications:

  • Signal routing and switching
  • Analog and digital multiplexing
  • Audio and video signal processing
  • Data acquisition systems
  • Test equipment
