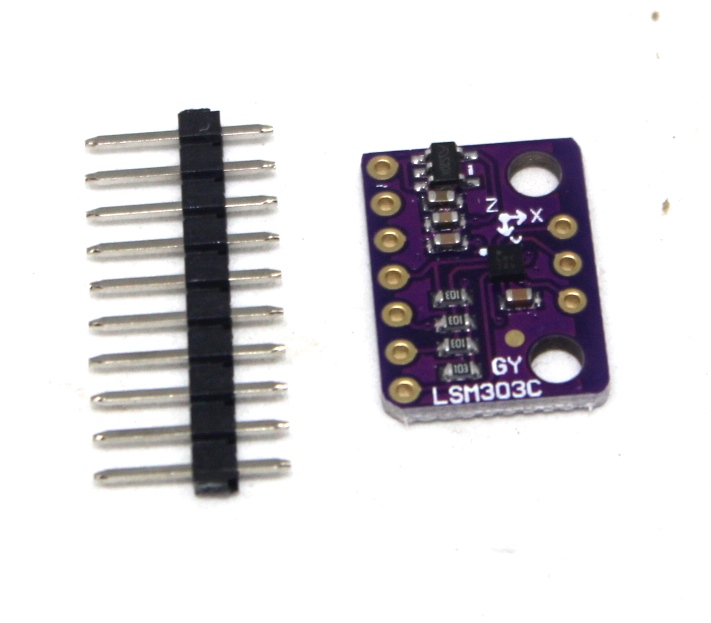

GY-LSM303C LIS3MDL 3 axis magnetometer
This content will be shared across all product pages.
Description:
The GY-LSM303C LIS3MDL 3-Axis Magnetometer is a high-performance magnetic sensor designed for precise detection of magnetic fields in three dimensions. It integrates the LIS3MDL sensor, known for its high sensitivity and accuracy. This module is ideal for applications in navigation, orientation detection, and electronic compasses.
Key Features:
- High-performance LIS3MDL magnetometer: Provides accurate 3-axis magnetic field measurements.
- Wide measurement range: ±4/±8/±12/±16 gauss selectable range for versatile applications.
- I2C and SPI interfaces: Supports easy integration with various microcontrollers and development platforms.
- Low power consumption: Energy-efficient operation suitable for battery-powered projects.
- High resolution: 16-bit data output for precise magnetic field detection.
- Compact design: Small form factor for easy integration into different projects.
- Sensor: LIS3MDL
- Measurement Range: ±4/±8/±12/±16 gauss (selectable)
- Output Data Rate: 0.625 Hz to 80 Hz
- Interface: I2C (default address: 0x1E) and SPI
- Operating Voltage: 2.4V to 3.6V
- Power Consumption: Low power mode and ultra-low power mode
- Resolution: 16-bit
- Dimensions: Compact module size (refer to datasheet for exact dimensions)
- Weight: Lightweight design
- Navigation systems: Enhances GPS accuracy by providing magnetic field data.
- Orientation detection: Used in devices requiring precise orientation sensing.
- Electronic compasses: Ideal for creating digital compasses with high accuracy.
- Robotics: Provides magnetic field data for robot navigation and positioning.
- Consumer electronics: Used in smartphones, tablets, and other portable devices for orientation sensing.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
