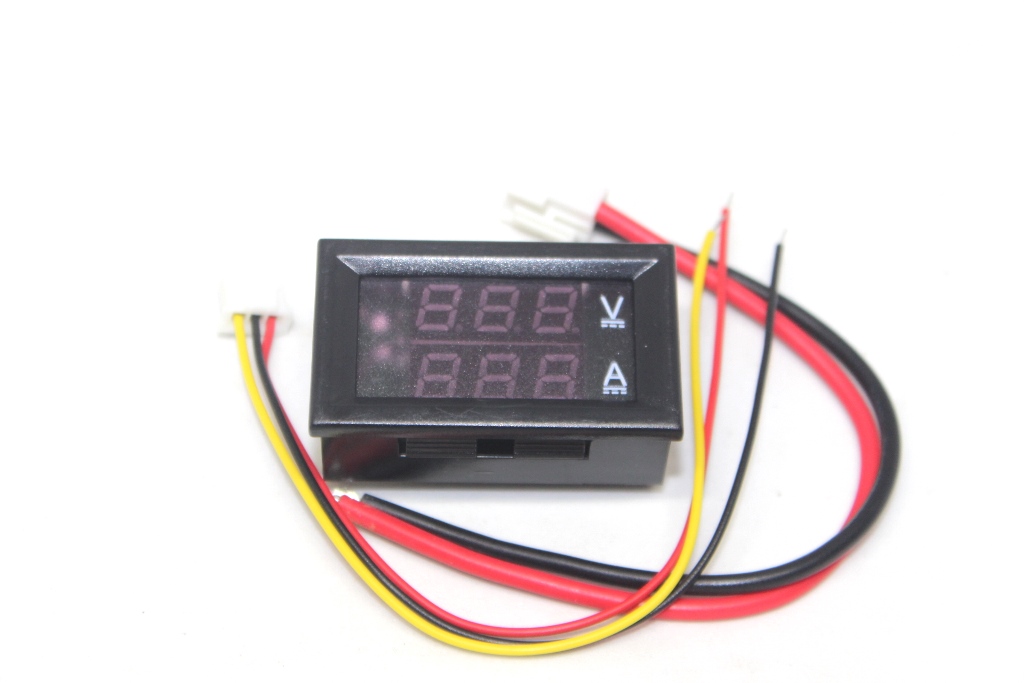

DC 0-100V 10A Voltage and current meter display
This content will be shared across all product pages.
Description:
The DC 0-100V 10A Voltage and Current Meter Display is a multifunctional digital meter designed for accurately measuring and displaying both voltage and current in DC circuits. It features a bright, easy-to-read LED display and is ideal for use in power supply monitoring, battery charging systems, and various electronics projects.
Key Features:
- Dual measurement: Simultaneously measures and displays DC voltage and current.
- Wide measurement range: Measures voltage from 0 to 100V and current up to 10A.
- LED display: Bright, clear display for easy readability.
- Compact design: Fits easily into panels and enclosures.
- Easy installation: Simple wiring and mounting for quick setup.
- High accuracy: Provides precise voltage and current readings.
- Low power consumption: Energy-efficient operation.
- Voltage Measurement Range: 0 to 100V DC
- Current Measurement Range: 0 to 10A DC
- Display Type: LED
- Display Color: Typically red (check specific model)
- Accuracy: ±1% (exact specifications may vary)
- Operating Voltage: Typically 4.5V to 30V DC (for meter operation)
- Dimensions: Compact size (refer to datasheet for exact dimensions)
- Weight: Lightweight for easy integration
- Power supply monitoring: Keeps track of voltage and current output.
- Battery charging systems: Monitors charging status and performance.
- Electronic projects: Provides accurate readings for DIY electronics and prototypes.
- Automotive applications: Measures voltage and current in vehicle systems.
- Solar power systems: Monitors output from solar panels and batteries.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
