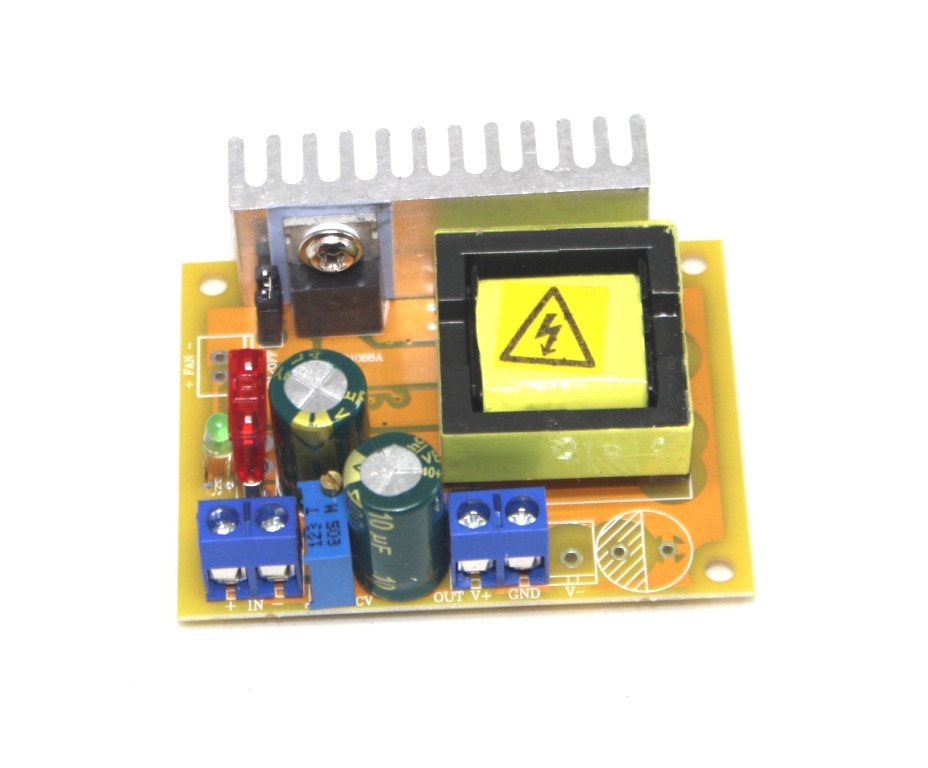

High Voltage DC-DC boost ZVS module 8-390VDC
This content will be shared across all product pages.
Description:
The High Voltage DC-DC Boost ZVS Module 8-390VDC is a versatile power conversion module designed to step up low DC voltages to high DC voltages efficiently. Utilizing Zero Voltage Switching (ZVS) technology, it achieves high efficiency and low heat generation, making it suitable for various high-voltage applications, including electronic experiments, high-voltage testing, and powering high-voltage devices.
Key Features:
- High voltage boost: Converts low DC input voltage (8V-32V) to a high DC output voltage (up to 390V).
- Zero Voltage Switching (ZVS): Enhances efficiency and reduces heat generation.
- Adjustable output: Easily set the desired output voltage with a multi-turn potentiometer.
- High efficiency: Typically achieves efficiency greater than 90% (depending on input/output conditions).
- Over-current protection: Prevents damage due to excessive current.
- Compact and lightweight: Easy to integrate into various projects.
- Input Voltage: 8V to 32V DC
- Output Voltage: 45V to 390V DC (adjustable)
- Output Power: 50W (max)
- Efficiency: ≥ 90% (depends on input/output voltage and current)
- Switching Frequency: Typically around 100kHz
- Protection: Over-current protection
- Dimensions: Compact module size (specific dimensions available in datasheet)
- Weight: Lightweight design
- Electronic experiments: Suitable for hobbyists and professionals working with high-voltage projects.
- High-voltage testing: Provides a reliable source of high voltage for testing components and circuits.
- Powering high-voltage devices: Ideal for applications requiring high DC voltages.
- Industrial applications: Used in various industrial settings where high voltage is necessary.
- Research and development: Facilitates R&D in high-voltage electronics.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
