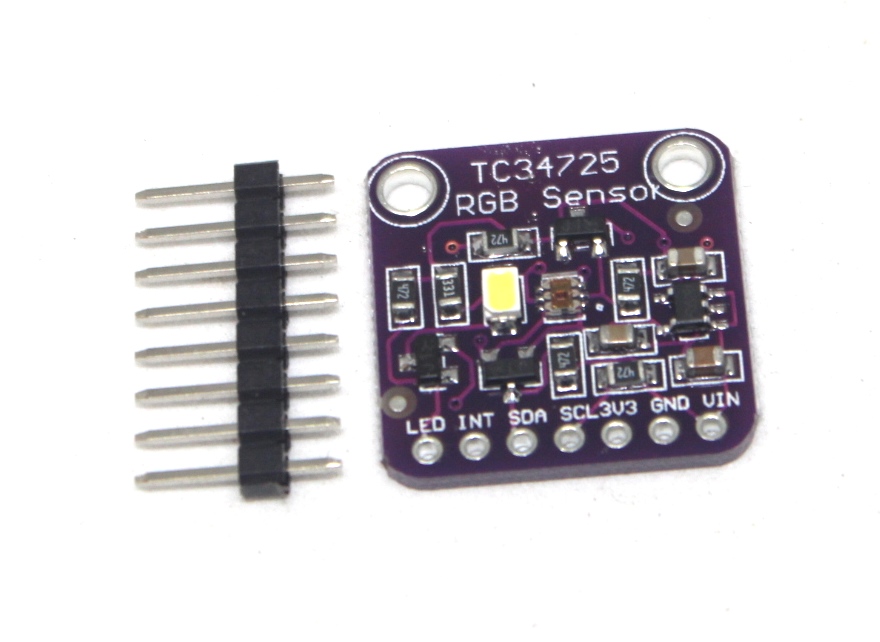

TCS34725 color sensor module
This content will be shared across all product pages.
Description:
The TCS34725 Color Sensor Module incorporates the TCS34725 sensor, enabling accurate color sensing and light intensity measurements across a wide spectrum of visible light. This module is ideal for applications requiring precise color detection, ambient light sensing, and color temperature measurement.
Key Features:
- Advanced TCS34725 color sensor for accurate color detection
- Integrated IR blocking filter for precise color measurements
- High sensitivity with wide dynamic range
- Programmable gain and integration time settings
- Digital output via I2C communication protocol
- Low power consumption for energy-efficient operation
- Compact module design for easy integration
- Sensor: TCS34725
- Detection Range: Visible spectrum
- IR Blocking Filter: Integrated
- Operating Voltage: Typically 3.3V to 5V DC
- Communication Interface: I2C (Address selection via ADDR pin)
- Dimensions: Compact module size for various applications
- Weight: Lightweight for minimal impact on device performance
- Color detection and recognition systems
- Ambient light sensing and adjustment
- Colorimeter and spectrophotometer devices
- Display backlight adjustment
- Industrial automation and quality control
- Consumer electronics for color-based applications
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
