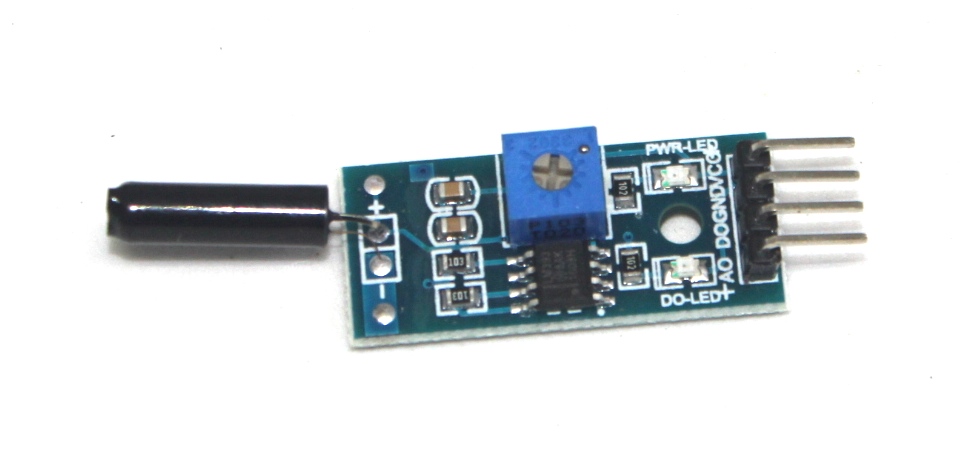

SW1801P vibration/tilt sensor module
This content will be shared across all product pages.
Description:
The SW1801P Vibration/Tilt Sensor Module is a versatile sensor designed to detect either vibrations or tilting movements. It incorporates a sensitive spring-based mechanism that reacts to changes in orientation or physical movements, making it suitable for various applications requiring motion detection.
Key Features:
- Dual functionality as a vibration sensor or tilt sensor
- Sensitive spring-based mechanism for accurate detection
- Low power consumption
- Compact module size for easy integration
- Typically operates with digital output (TTL level)
- Suitable for DIY electronics projects, alarms, and motion-activated applications
- Operating Voltage: Typically 3V to 5V DC
- Output Type: Digital signal (TTL)
- Detection Method: Spring-based vibration or tilt detection
- Dimensions: Compact size for various applications
- Weight: Lightweight and portable
- Motion detection in alarms and security systems
- Tilt sensing in robotics and automation
- Vibration monitoring in industrial equipment
- DIY electronics projects requiring motion detection
- Consumer electronics for orientation-based functionalities
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
