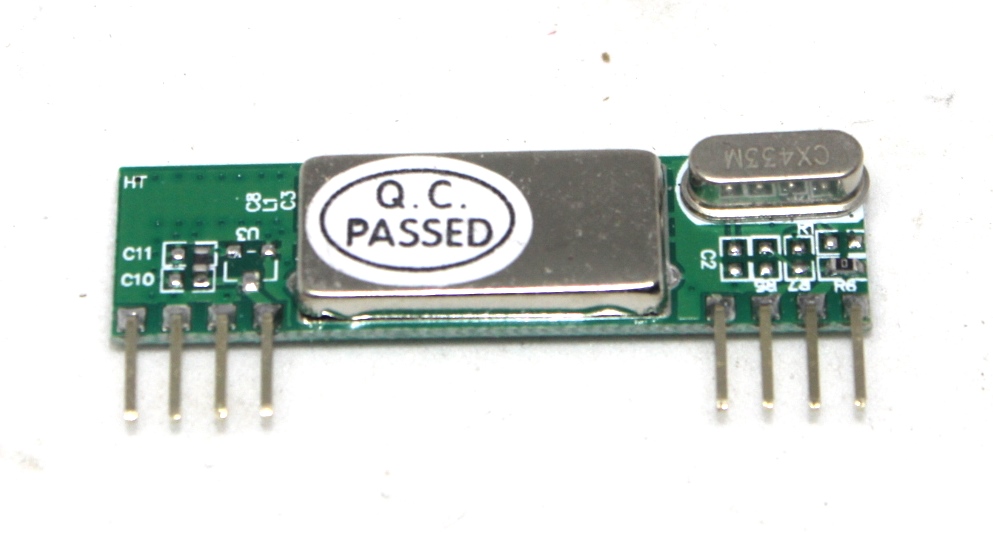

RXB6 433MHz superheterodyne wireless receiver module
This content will be shared across all product pages.
Description:
The RXB6 433MHz Superheterodyne Wireless Receiver Module is a compact and efficient RF (Radio Frequency) receiver module designed for wireless communication applications operating at 433MHz frequency. It employs superheterodyne architecture, enhancing sensitivity and reliability in receiving data signals over relatively long distances. This module is widely used in remote control systems, wireless data transmission, and other applications requiring reliable RF communication.
Key Features:
- High sensitivity superheterodyne receiver
- Operating frequency: 433MHz
- Low power consumption
- Wide operating voltage range
- Stable performance with high anti-interference capability
- Easy integration with microcontrollers and other digital systems
- Compact size for flexible installation
- Operating Frequency: 433MHz
- Receiver Sensitivity: Typically -105dBm
- Supply Voltage: Typically 5V DC
- Current Consumption: Typically 3.5mA
- Modulation: ASK/OOK
- Data Rate: Up to 10kbps
- Interface: Digital output (TTL level)
- Dimensions: Compact module size
- Weight: Lightweight for easy handling
- Remote control systems
- Wireless data transmission
- Home automation
- Remote sensing and monitoring
- IoT (Internet of Things) applications
- Industrial control and monitoring
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
