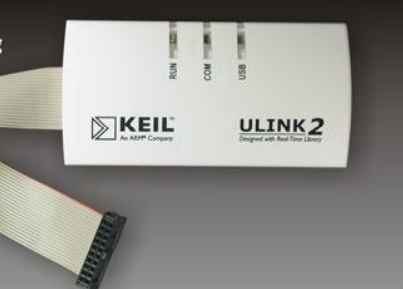

ULINK2 Debug Adapter
This content will be shared across all product pages.
Description:
The ULINK2 Debug Adapter is a versatile tool designed for debugging and programming ARM Cortex-M based microcontrollers. It connects a host computer with ARM processors via USB, facilitating real-time debugging, flash programming, and system analysis. The ULINK2 adapter supports various ARM cores and integrates seamlessly with Keil MDK (Microcontroller Development Kit) for efficient development and testing of embedded systems.
Key Features:
- USB interface for connectivity with host computer
- Supports ARM Cortex-M series microcontrollers
- Real-time debugging capabilities
- Flash programming for on-chip memory
- System analysis with event- and cycle-accurate tracing
- Integrated support for Keil MDK IDE
- Compatible with various ARM development boards and evaluation platforms
- Interface: USB 2.0
- Supported Cores: ARM Cortex-M0, M0+, M3, M4, M7
- Debug Protocols: JTAG, SWD (Serial Wire Debug)
- Programming: Flash programming for on-chip memory
- Operating System Compatibility: Windows
- Dimensions: Compact and portable design
- Embedded software development
- Firmware debugging
- System optimization and analysis
- Educational purposes in ARM microcontroller programming
- Integration with ARM development environments
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
