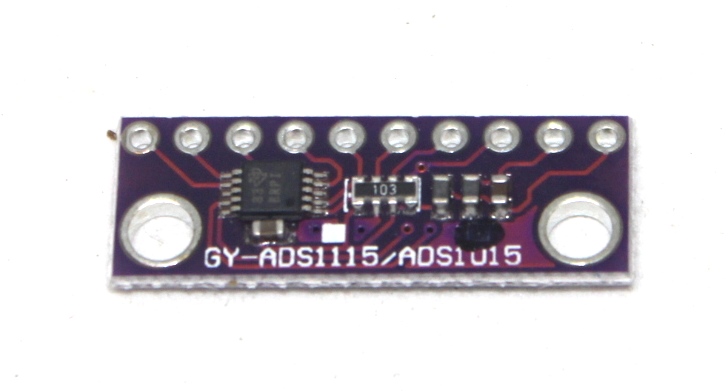

GY-ADS1015 12 bit ADC module

https://www.hub360.cc/web/image/product.template/14547/image_1920?unique=bd1def9
(0 review)
4 sold in last 24 hours

₦ 6,139.53 6139.53 NGN ₦ 6,139.53 Tax Excluded

₦ 6,600.00 Tax Excluded

Not Available For Sale

(₦ 0.00 / Units)
4 people are viewing this right now

This combination does not exist.

This content will be shared across all product pages.

Contact Us
Description: The GY-ADS1015 12-bit ADC Module is a compact and versatile analog-to-digital converter module based on the ADS1015 IC. It is designed to provide accurate and reliable analog voltage measurements for a variety of applications, including sensor interfacing, data acquisition systems, and voltage monitoring circuits. This module integrates essential features for easy integration and precise analog signal conversion. Key Features:
  • 12-bit analog-to-digital conversion resolution
  • Four input channels (single-ended or differential inputs)
  • Programmable data rate up to 3300 samples per second (SPS)
  • Internal programmable gain amplifier (PGA) up to 16x
  • Wide operating voltage range: 2.0V to 5.5V
  • I2C interface for communication with microcontrollers
  • Onboard voltage reference
  • Compact size for easy integration into various projects
Technical Specifications:
  • ADC Resolution: 12-bit
  • Input Channels: 4 (single-ended or differential)
  • Programmable Gain: Up to 16x
  • Data Rate: Up to 3300 samples per second (SPS)
  • Operating Voltage: 2.0V to 5.5V
  • Interface: I2C (Address selection via ADDR pin)
  • Integrated Voltage Reference: Yes
  • Dimensions: Compact module size for easy integration
  • Weight: Lightweight for portability
Applications:
  • Sensor interfacing and data acquisition
  • Battery voltage monitoring
  • Portable instrumentation
  • Industrial automation
  • IoT (Internet of Things) devices
  • Educational projects in electronics and microcontroller interfacing
Datasheet: For detailed technical information, refer to the GY-ADS1015 12-bit ADC Module Datasheet.

Technical Specifications:

  • Logic Family: CMOS
  • Number of Channels: 3
  • Switch Configuration: Single-Pole Double-Throw (SPDT)
  • Supply Voltage Range: 3V to 15V
  • “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
  • “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
  • Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
  • Maximum Operating Frequency: 40 MHz at V_DD = 10V

Applications:

  • Signal routing and switching
  • Analog and digital multiplexing
  • Audio and video signal processing
  • Data acquisition systems
  • Test equipment
