Copper Clad laminate (CCL) Double side 10X15CM 1.5mm thick
This content will be shared across all product pages.
Description:

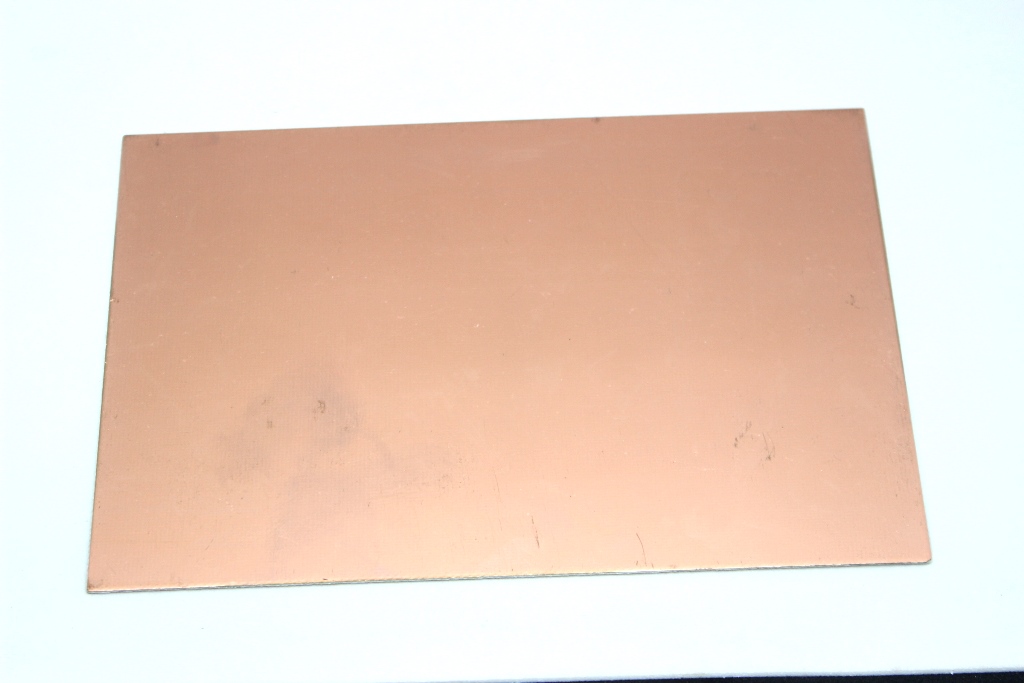

The Copper Clad Laminate (CCL) Double Side 10X15CM 1.5mm thick is a high-quality PCB (Printed Circuit Board) material used for creating custom electronic circuits. This double-sided copper clad board provides a solid foundation for etching and prototyping electronic designs. With its 1.5mm thickness, it ensures durability and stability for a wide range of applications, making it ideal for both professional and hobbyist use.
Key Features:
- Double-sided copper layer for versatile circuit designs
- High-quality FR4 substrate for excellent mechanical and thermal properties
- Standard 10x15cm size suitable for various projects
- 1.5mm thickness for added strength and durability
- Smooth and uniform copper surface for easy etching
- Suitable for DIY PCB prototyping and custom circuit boards
- Material: FR4 epoxy fiberglass
- Copper Thickness: Typically 35μm (1oz)
- Board Thickness: 1.5mm
- Dimensions: 10cm x 15cm
- Layers: Double-sided copper
- Surface Finish: Smooth, uniform copper
- DIY PCB prototyping
- Custom electronic circuit designs
- Educational and training projects
- Professional PCB fabrication
- Repair and replacement of PCB sections
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
