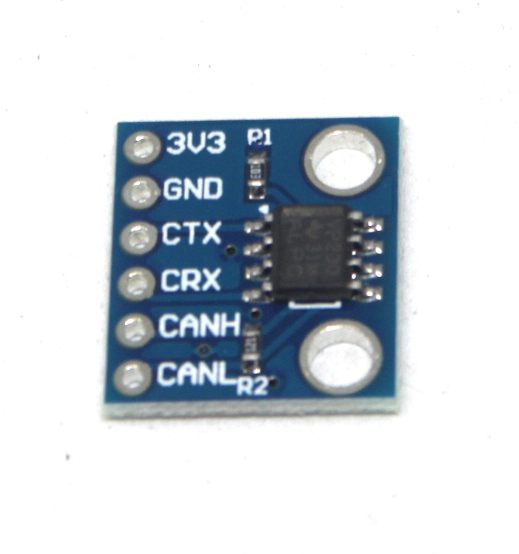

MCU-230 SN65HVD230 BUS CAN Transceiver module
This content will be shared across all product pages.
The MCU-230 SN65HVD230 BUS CAN Transceiver module is a high-speed and reliable device designed for Controller Area Network (CAN) communication. It integrates the SN65HVD230 transceiver chip, which ensures robust and stable data transfer in automotive and industrial applications. This module supports both high-speed and fault-tolerant CAN networks, making it ideal for applications requiring dependable communication over long distances and in harsh environments.
Key Features:
- High-speed CAN transceiver
- Compatible with ISO 11898-2 standard
- Wide operating voltage range
- Low current consumption
- High ESD protection
- Thermal shutdown protection
- Supports up to 1 Mbps data rates
- Robust against electromagnetic interference
- Transceiver Chip: SN65HVD230
- Operating Voltage Range: 3.3V to 5.5V
- Data Rate: Up to 1 Mbps
- Bus Pin ESD Protection: ±16 kV Human Body Model (HBM)
- Thermal Shutdown: Yes
- Operating Temperature Range: -40°C to 85°C
- Package Type: Module
- Dimensions: Compact size for easy integration
- Weight: Lightweight for portability
- Automotive CAN networks
- Industrial automation
- Building automation
- Medical equipment
- Robotics
- Any application requiring robust and reliable CAN communication
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
