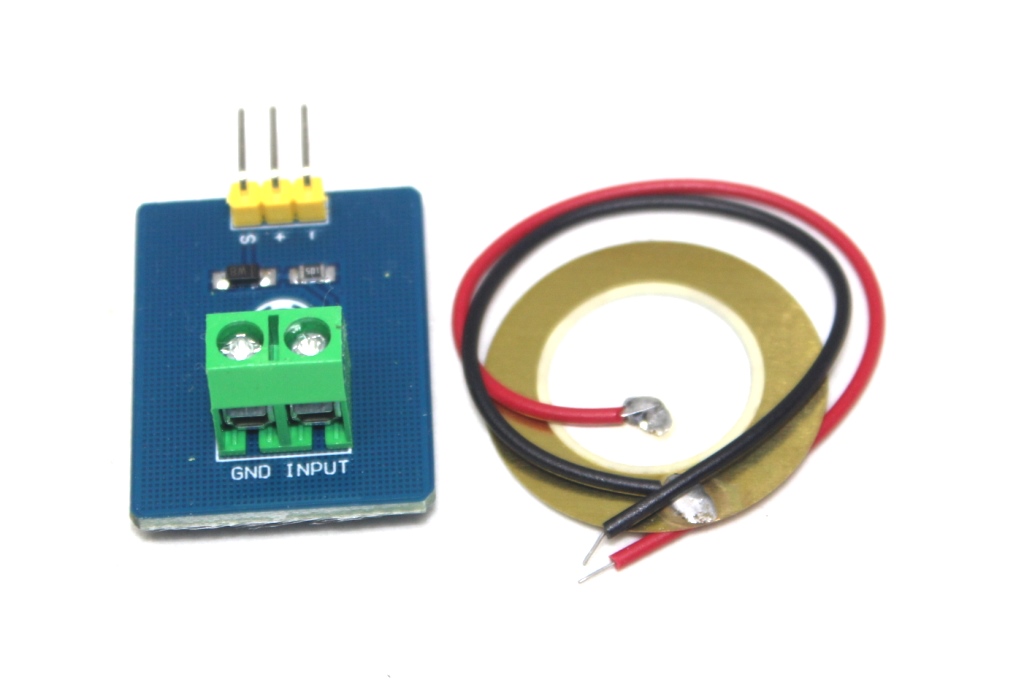

Analog piezoelectric vibration module
This content will be shared across all product pages.
Description: The Analog Piezoelectric Vibration Module is a sensor designed to detect vibrations and mechanical shocks. It utilizes a piezoelectric element that generates an electrical signal in response to physical vibrations or impacts. This module converts mechanical energy into electrical signals that can be measured and processed by microcontrollers or other electronic circuits. It is commonly used in applications requiring vibration detection and monitoring, such as industrial machinery, security systems, and vibration analysis tools.
Key Features:
- Piezoelectric sensor for vibration detection
- Analog output signal proportional to vibration intensity
- High sensitivity to detect small vibrations
- Wide frequency response range
- Compact and lightweight design
- Low power consumption
- Easy to integrate with microcontrollers and signal processing circuits
- Operating Voltage: Typically 3.3V to 5V DC
- Output Signal: Analog voltage
- Sensitivity: Adjustable sensitivity via onboard potentiometer
- Frequency Response: Wide frequency range suitable for various applications
- Dimensions: Compact size for easy integration
- Weight: Lightweight for minimal impact on the system
- Industrial machinery for vibration monitoring
- Security systems for intrusion detection
- Structural health monitoring
- Condition monitoring in rotating machinery
- Automotive applications for impact detection
- Consumer electronics for user interaction sensing
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
