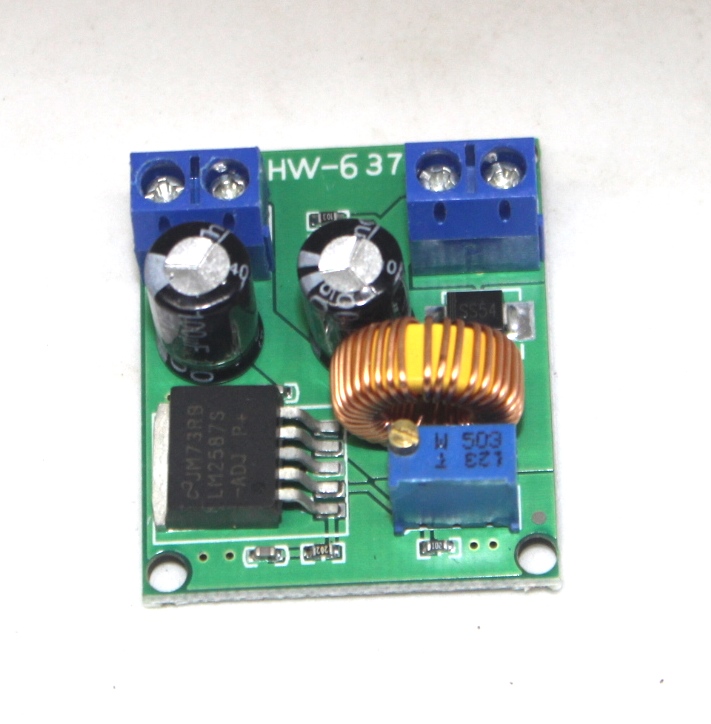

LM2587 high power DC-DC boost module
This content will be shared across all product pages.
Description: The LM2587 High Power DC-DC Boost Module is a versatile and efficient power conversion module designed to step up (boost) DC voltage. It utilizes the LM2587 switching regulator IC to provide a stable and adjustable output voltage, making it ideal for applications requiring a higher voltage from a lower voltage source. This module is commonly used in power supply circuits, battery-powered devices, and renewable energy systems.
Key Features:
- High-efficiency DC-DC boost conversion
- Adjustable output voltage
- Wide input voltage range
- High power output capability
- Built-in overcurrent and thermal protection
- Compact and robust design
- Easy to integrate with various electronic projects
- Input Voltage Range: 5V to 32V DC
- Output Voltage Range: 6V to 50V DC (adjustable)
- Output Current: Up to 5A (peak), 3A (continuous)
- Efficiency: Up to 92%
- Switching Frequency: 100 kHz
- Protection: Overcurrent and thermal protection
- Dimensions: 54 mm x 23 mm x 15 mm
- Weight: 20 g
- Power supply circuits for electronics projects
- Boosting battery voltage in portable devices
- Renewable energy systems such as solar power setups
- Automotive electronics requiring voltage step-up
- DIY electronics and prototyping
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
