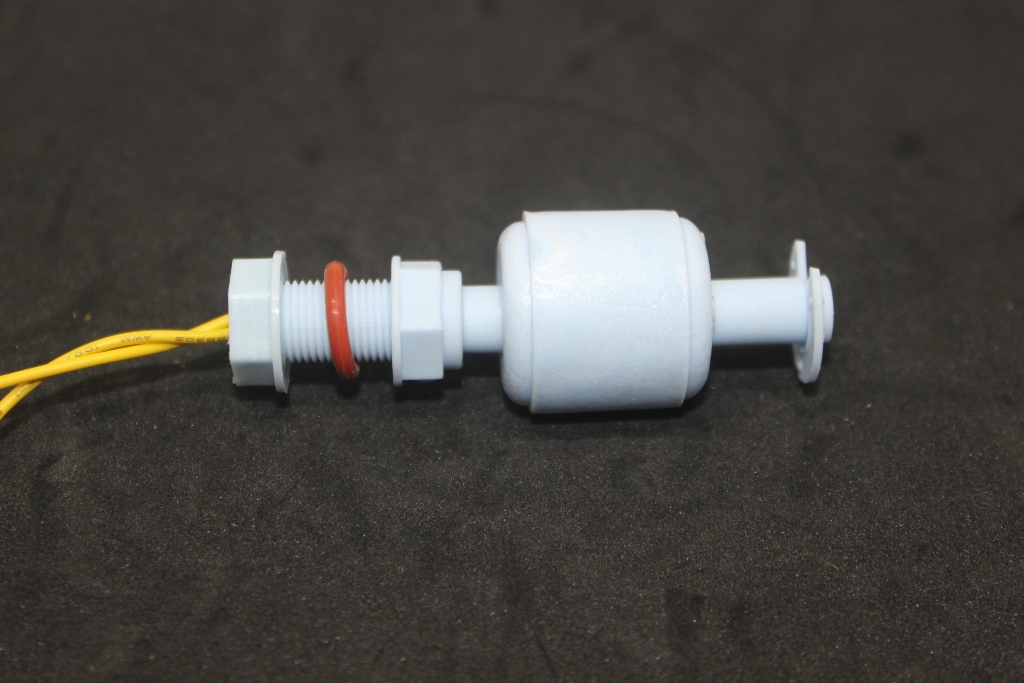

Description: The Liquid/Water Level Float Switch is a versatile sensor designed to detect the presence or absence of liquid at a specific level within a container. It consists of a buoyant float connected to a mechanical switch mechanism, which changes state (open or closed) based on the liquid level. This switch is commonly used in applications such as water tanks, sump pumps, and industrial machinery to control liquid levels, prevent overflow, and automate pumping operations. Key Features:
  • Detects liquid/water level based on float position
  • Reliable mechanical switch mechanism
  • Buoyant float for accurate level sensing
  • Suitable for various liquids including water, oil, and chemicals
  • Simple installation and maintenance
  • Can be configured for normally open (NO) or normally closed (NC) operation
  • Durable construction for long-term reliability
Technical Specifications:
  • Switch Type: Mechanical float switch
  • Contact Rating: Typically up to 10W/VA
  • Maximum Voltage: Dependent on contact rating
  • Maximum Current: Dependent on contact rating
  • Operating Temperature: Typically -10°C to +60°C
  • Float Material: Stainless steel, plastic, or other corrosion-resistant materials
  • Cable Length: Customizable lengths available
  • Mounting: Vertical or horizontal mounting options
Applications:
  • Water tanks and reservoirs for level monitoring and control
  • Sump pumps and drainage systems to prevent flooding
  • Industrial machinery for liquid level detection and automation
  • HVAC systems for condensate level sensing
  • Aquariums and fish tanks for automatic water refill

Technical Specifications:

  • Logic Family: CMOS
  • Number of Channels: 3
  • Switch Configuration: Single-Pole Double-Throw (SPDT)
  • Supply Voltage Range: 3V to 15V
  • “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
  • “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
  • Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
  • Maximum Operating Frequency: 40 MHz at V_DD = 10V

Applications:

  • Signal routing and switching
  • Analog and digital multiplexing
  • Audio and video signal processing
  • Data acquisition systems
  • Test equipment
