XH-M203 liquid/water level float switch control module

Price:

₦ 5,302.33

info@hub360.com.ng 07044715478
XH-M203 liquid/water level float switch control module
  2. Shop
  3. XH-M203 liquid/water level float switch control module
two pin tact switch 6*6*5mm
two pin tact switch 6*6*5mm
₦ 41.86
₦ 41.86

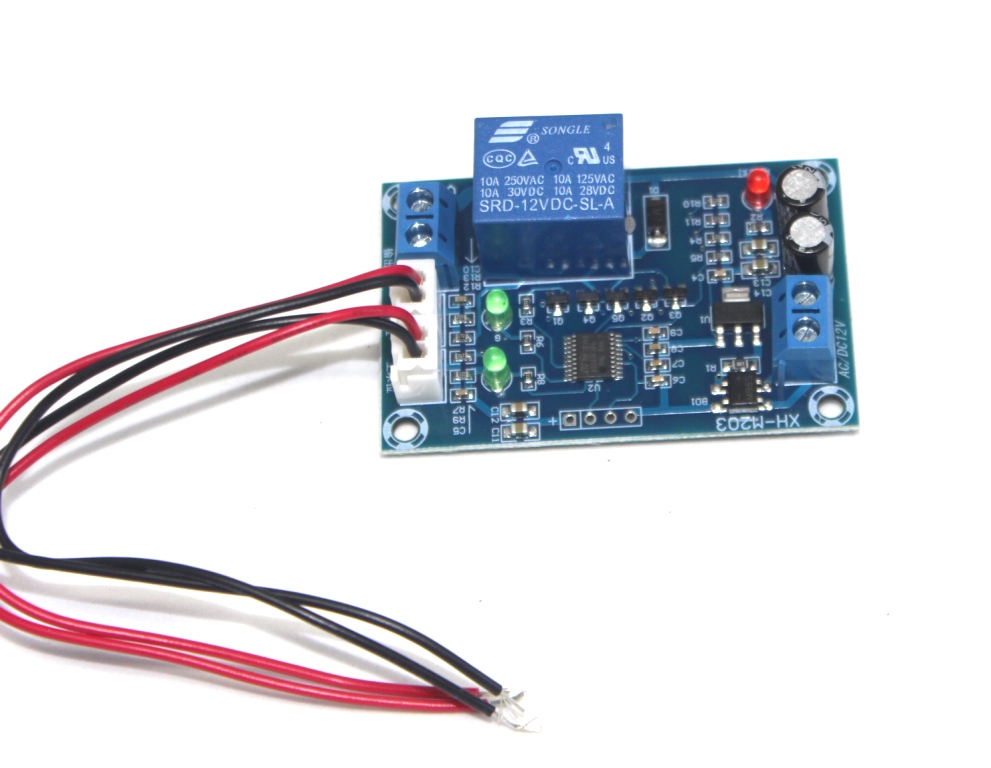

XH-M203 liquid/water level float switch control module

https://www.hub360.cc/web/image/product.template/14574/image_1920?unique=bd1def9
(0 review)
5 sold in last 24 hours

₦ 5,302.33 5302.33 NGN ₦ 5,302.33 Tax Excluded

₦ 5,700.00 Tax Excluded

Not Available For Sale

(₦ 0.00 / Units)
3 people are viewing this right now

This combination does not exist.

This content will be shared across all product pages.

Contact Us
Description: The XH-M203 Liquid/Water Level Float Switch Control Module is an advanced electronic module designed for precise liquid level monitoring and control using float switches. It integrates a robust relay that facilitates the automatic operation of pumps, solenoid valves, or alarms based on detected liquid levels. This module is essential for applications requiring reliable liquid level sensing and control, such as water tanks, industrial systems, and automated liquid handling setups. Key Features:
  • Integrated relay for switching high-current devices
  • Supports float switches for accurate liquid level detection
  • Adjustable sensitivity for float switch activation
  • LED indicators for power and relay status
  • Supports both high and low liquid level control
  • Compact and easy to integrate into existing systems
  • Widely used in industrial automation and DIY projects
Technical Specifications:
  • Input Voltage: DC 12V
  • Relay Capacity: 10A (maximum)
  • Sensor Type: Compatible with float switches (not included)
  • Operating Temperature: -40°C to +85°C
  • Dimensions: Compact size for versatile installation
  • Weight: Lightweight for convenient handling
Applications:
  • Water tanks and reservoirs for automated filling or draining operations
  • Industrial equipment requiring precise liquid level monitoring and control
  • Aquatic systems such as aquariums for maintaining water levels
  • Home automation projects involving liquid management and safety
  • DIY electronics for customizable liquid level sensing and automation

Technical Specifications:

  • Logic Family: CMOS
  • Number of Channels: 3
  • Switch Configuration: Single-Pole Double-Throw (SPDT)
  • Supply Voltage Range: 3V to 15V
  • “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
  • “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
  • Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
  • Maximum Operating Frequency: 40 MHz at V_DD = 10V

Applications:

  • Signal routing and switching
  • Analog and digital multiplexing
  • Audio and video signal processing
  • Data acquisition systems
  • Test equipment
