3s LIPO/ 12v battery power level indicator
This content will be shared across all product pages.

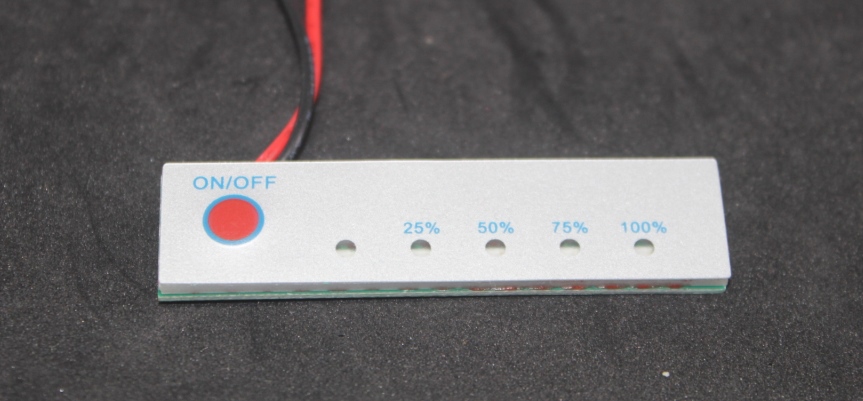

Description: The 3S LiPo / 12V Battery Power Level Indicator is a compact and versatile module designed to monitor the voltage level of 3-cell lithium polymer (LiPo) batteries or 12V lead-acid batteries. It provides users with visual indicators to easily gauge the remaining charge level, ensuring optimal usage and preventing over-discharge. This module is essential for applications such as RC vehicles, drones, portable electronics, and solar power systems, where accurate battery monitoring is crucial for safe operation.
Key Features:
- Monitors 3S LiPo batteries (11.1V nominal) or 12V lead-acid batteries
- LED indicators for quick visual feedback of battery charge level
- Precise voltage detection for accurate monitoring
- Compact and lightweight design for easy integration
- Low power consumption
- Reverse polarity protection for added safety
- Easy to install and operate
- Battery Compatibility: 3S LiPo (11.1V nominal) or 12V Lead-Acid
- Input Voltage Range: 9V to 15V
- Display: LED indicators for different voltage levels (e.g., 100%, 75%, 50%, 25%)
- Accuracy: ±0.1V
- Operating Temperature: -10°C to +50°C
- Dimensions: Compact size suitable for various applications
- Weight: Lightweight for minimal impact on device weight
- RC Vehicles and drones for monitoring battery status during operation
- Portable electronics requiring reliable battery monitoring
- Solar power systems to track battery charge levels
- DIY projects and prototypes needing accurate power management
- Automotive and marine applications for battery health monitoring
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
