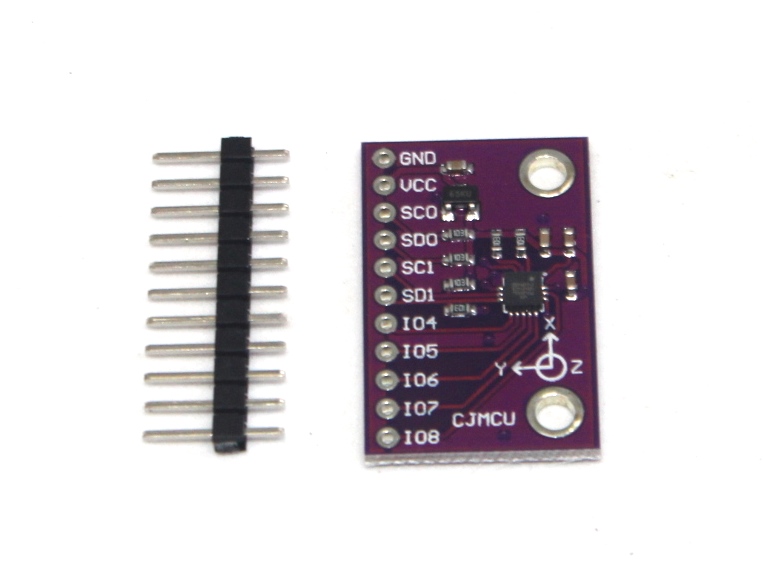

MCU-955 MMA9555L pedometer module
This content will be shared across all product pages.
Description: The MCU-955 MMA9555L is an intelligent pedometer module that integrates a high-performance accelerometer with a powerful processing engine. It is designed to provide accurate step counting and motion detection, making it ideal for use in fitness trackers, health monitoring devices, and other wearable technology. The module offers various configurable features and low power consumption, ensuring optimal performance for portable applications.
Key Features:
- Integrated 3-axis accelerometer
- High accuracy step counting
- Low power consumption
- Configurable motion detection
- Embedded DSP for real-time processing
- I2C interface for easy integration
- Programmable thresholds and sampling rates
- Package Type: LGA-14
- Supply Voltage (Vcc): 1.71V to 1.89V
- Acceleration Range: ±2g/±4g/±8g
- Output Data Rate: 1 Hz to 800 Hz
- Current Consumption: 120 μA (active mode), 6 μA (standby mode)
- Interface: I2C
- Operating Temperature: -40°C to +85°C
- Dimensions: 3 mm x 3 mm x 0.95 mm
- Weight: 0.03 g
- Fitness Trackers: Used in wearable devices for accurate step counting and activity monitoring.
- Health Monitoring Devices: Ideal for health monitoring applications requiring precise motion detection.
- Portable Electronics: Suitable for use in various portable electronic devices with motion sensing capabilities.
- Consumer Electronics: Used in consumer electronics for enhanced user interaction through motion sensing.
- Sports Equipment: Suitable for integration into sports equipment for performance tracking and analysis.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
