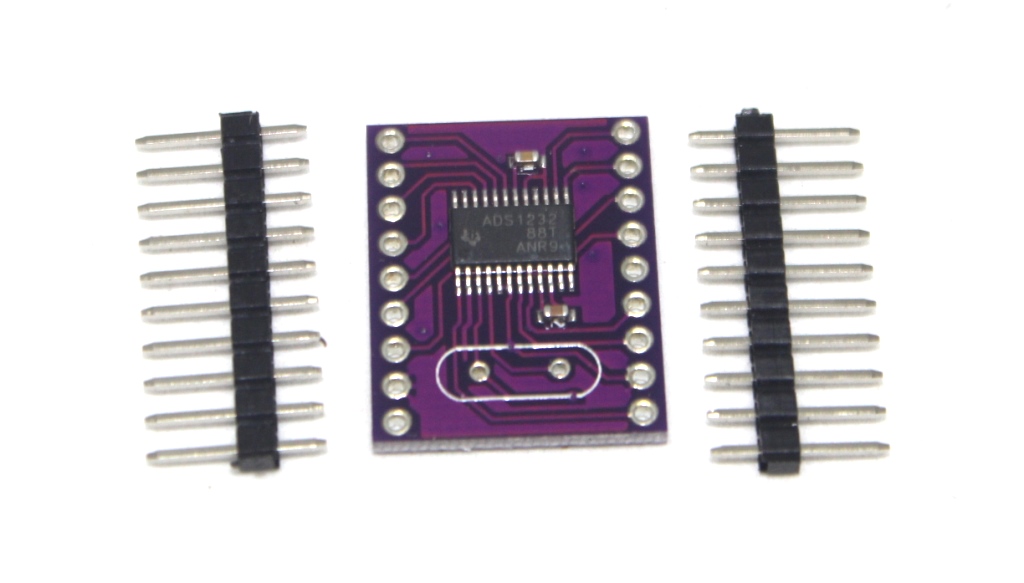

MCU-1232 ADS1232 Ultra low noise 24bit Analog to Digital coverter (ADC)
This content will be shared across all product pages.
The MCU-1232 ADS1232 is a high-precision analog-to-digital converter designed for applications requiring ultra-low noise and high resolution. It offers 24-bit resolution, making it suitable for precise measurement systems in industrial, medical, and scientific fields. The ADC integrates features that enhance accuracy and reliability in data acquisition processes, ensuring minimal noise interference and high sensitivity to small signals.
Key Features:
- 24-bit resolution ADC
- Ultra-low noise performance
- High sensitivity to small signals
- Built-in PGA (Programmable Gain Amplifier)
- On-chip reference voltage
- SPI (Serial Peripheral Interface) communication
- Low power consumption
- Compact and easy to integrate into systems
- Resolution: 24-bit
- Input Voltage Range: 2.7 - 5.3V
- Input Impedance: [Specify impedance if known]
- Operating Temperature Range: -40°C to +105°C
- Precision measurement instruments
- Industrial process control
- Medical equipment
- Data acquisition systems
- Scientific research
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
