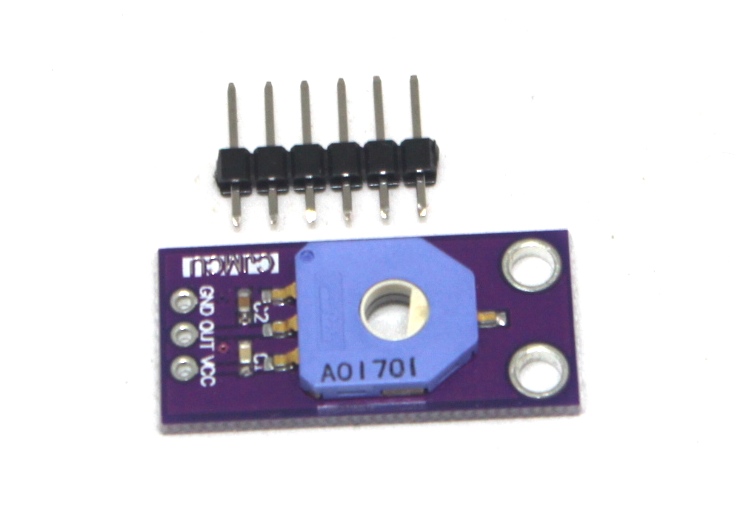

MCU-103 Rotation Angle sensor
This content will be shared across all product pages.
The MCU-103 Rotation Angle Sensor is a precise and reliable sensor designed to measure rotational angles. This module provides an analog output that corresponds to the rotational position of the sensor, making it ideal for applications such as robotic arms, servo motors, potentiometers, and any project that requires precise angle measurement. Its compact design and easy integration capabilities make it a versatile component for various DIY and professional electronics projects.
Key Features:
- Accurate rotational angle measurement
- Analog output proportional to the rotation angle
- Wide measurement range
- Compact and lightweight design
- Easy to interface with microcontrollers
- High reliability and long life
- Suitable for a variety of applications
- Sensor Type: Rotation Angle Sensor
- Measurement Range: 0° to 300°
- Output: Analog voltage
- Supply Voltage: 3.3V to 5V DC
- Output Voltage Range: 0V to Vcc
- Operating Temperature Range: -40°C to +85°C
- Robotic arms
- Servo motors
- Potentiometers
- Angle measurement in mechanical systems
- DIY electronics projects
- Industrial automation
- Position feedback systems
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
