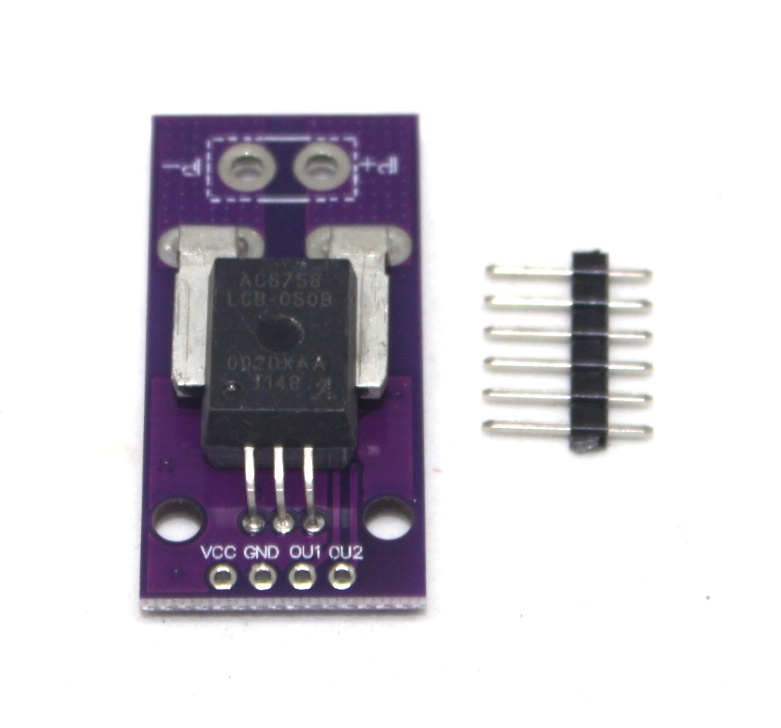

MCU-758 ACS758 Current sensor module
This content will be shared across all product pages.
The MCU-758 ACS758 Current Sensor Module is a high-precision sensor designed to measure both AC and DC currents. It utilizes the ACS758 sensor, which offers precise current sensing with an analog output proportional to the current flowing through the device. This module is ideal for various applications including motor control, load detection and management, switched-mode power supplies, and overcurrent fault protection. The ACS758 sensor is known for its high accuracy, fast response time, and robust performance in industrial environments.
Key Features:
- High-precision current sensing for AC and DC currents
- Analog output proportional to current
- Wide current sensing range
- Fast response time
- High accuracy and reliability
- Integrated overcurrent fault protection
- Compact and easy to integrate into various projects
- Suitable for a variety of applications
- Sensor Type: ACS758
- Current Sensing Range: ±50A
- Output: Analog voltage
- Supply Voltage: 3.3V to 5V DC
- Output Sensitivity:40mV/A
- Response Time: 3µs
- Operating Temperature Range: -40°C to +150°C
- Dimensions:37 * 18mm
- Weight:8.8g
- Motor control
- Load detection and management
- Switched-mode power supplies
- Overcurrent fault protection
- Battery monitoring
- Industrial automation
- DIY electronics projects
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
