Raspberry pi VGA expansion module
This content will be shared across all product pages.

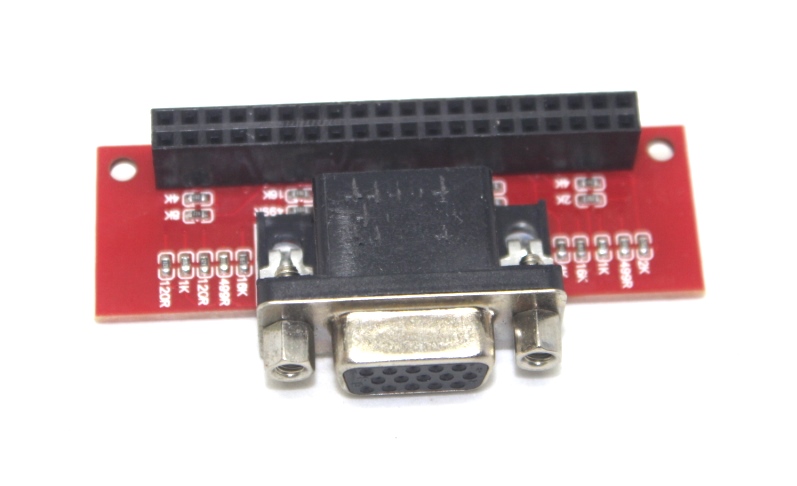

The Raspberry Pi VGA Expansion Module is an accessory designed to add VGA output capability to Raspberry Pi boards. This module connects to the GPIO header of the Raspberry Pi and provides a VGA output for connecting to VGA-compatible displays, such as older monitors and projectors. It is ideal for projects requiring a VGA interface, making it suitable for educational purposes, retro computing, and various DIY electronics projects.
Key Features:
- Adds VGA output capability to Raspberry Pi
- Easy connection via GPIO header
- Supports standard VGA resolutions
- Compact and lightweight design
- Compatible with multiple Raspberry Pi models
- No additional power supply needed
- Ideal for retro computing and educational projects
- Interface: GPIO header connection
- Output: VGA
- Supported Resolutions: Up to 1920x1080 (Full HD)
- Power Supply: Powered via Raspberry Pi GPIO
- Dimensions: 64.00mm x 32.24mm
- Weight: 16.48 g
- Operating Temperature: 0°C to +50°C
- Connecting Raspberry Pi to VGA displays
- Retro computing projects
- Educational tools for learning about VGA and display interfaces
- DIY electronics projects
- Extending display capabilities of Raspberry Pi
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
