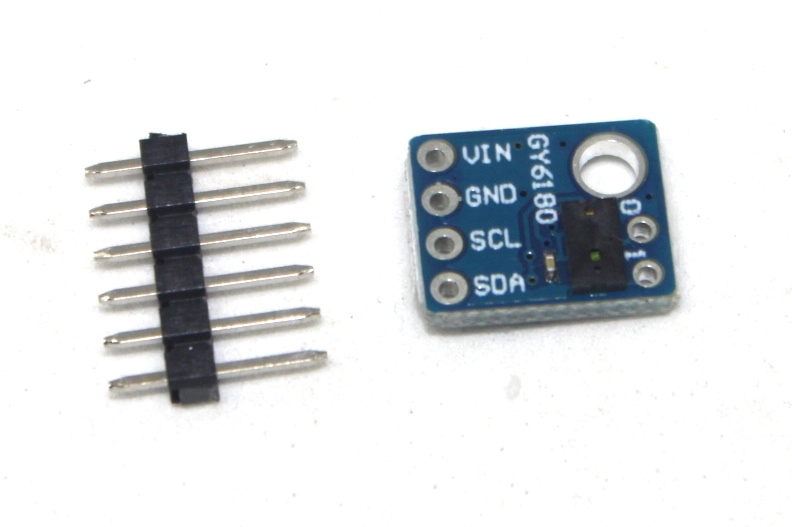

GY6180 VL6180X Time of flight Distance sensor module
This content will be shared across all product pages.
The GY6180 VL6180X Time of Flight Distance Sensor Module utilizes time-of-flight (ToF) technology to accurately measure distances. It incorporates the VL6180X sensor, which is capable of measuring absolute range up to several centimeters with high accuracy. This module is ideal for applications requiring precise distance measurement without contact, such as robotics, gesture recognition, proximity sensing, and DIY electronics projects. The module provides a digital output that can be interfaced with microcontrollers and other digital devices.
Key Features:
- Time-of-flight distance measurement technology
- Measures absolute range up to several centimeters
- High accuracy and resolution
- Ambient light rejection capability
- I2C digital interface for easy integration
- Compact and easy to integrate into various projects
- Low power consumption
- Suitable for a variety of applications
- Sensor Type: VL6180X Time of Flight (ToF)
- Measurement Range: Up to several centimeters
- Output: Digital (I2C)
- Power Supply: 2.8V to 5V DC
- Operating Temperature: -40°C to +85°C
- Robotics
- Gesture recognition
- Proximity sensing
- Object detection and avoidance
- DIY electronics projects
- Industrial automation
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
