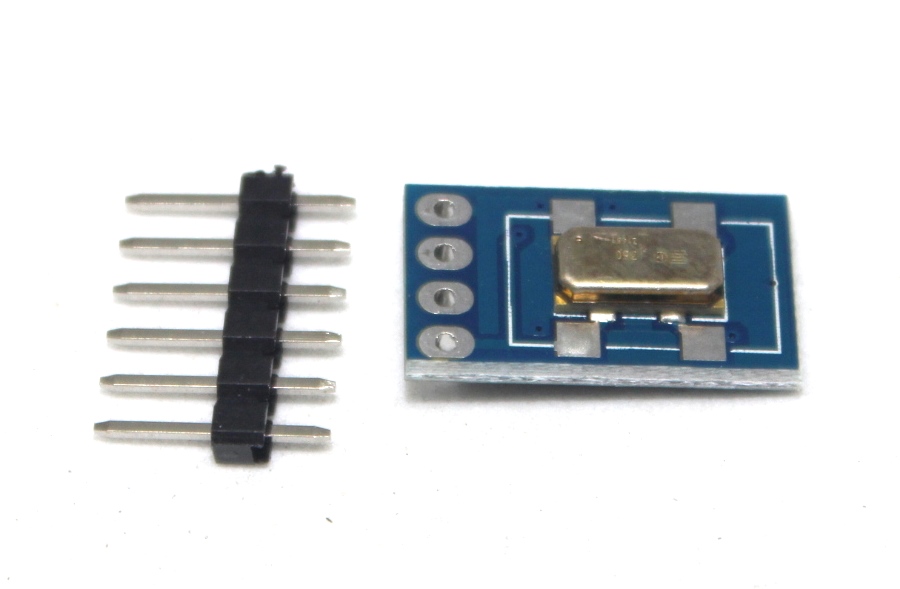

GY-35 single axis gyroscope module
This content will be shared across all product pages.
The GY-35 Single Axis Gyroscope Module is a compact and efficient sensor designed to measure angular velocity along a single axis. It is ideal for applications requiring precise rotational motion detection, such as robotics, gaming devices, motion tracking systems, and various DIY electronics projects. The module provides an analog output that corresponds to the angular rate, making it easy to interface with microcontrollers and other digital devices.
Key Features:
- High sensitivity and accuracy
- Single-axis angular velocity measurement
- Analog output proportional to angular rate
- Compact and easy to integrate into various projects
- Low power consumption
- Suitable for a variety of applications
- Sensor Type: Single axis gyroscope
- Measurement Range: ±300°/s (typical)
- Output: Analog voltage
- Power Supply: 3.3V to 5V DC
- Operating Temperature: -40°C to +85°C
- Robotics
- Gaming devices
- Motion tracking systems
- Stabilization systems
- DIY electronics projects
- Inertial measurement units (IMUs)
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
