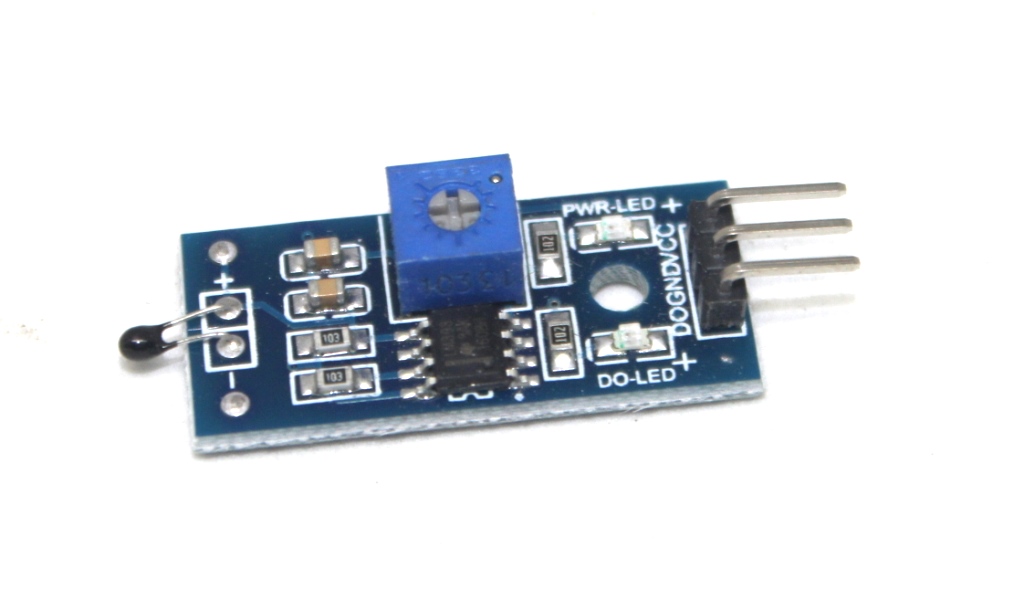

Thermistor temperature sensor module
This content will be shared across all product pages.
The Thermistor Temperature Sensor Module is a versatile and reliable sensor designed to measure temperature accurately using a thermistor. This module is ideal for a wide range of applications, including temperature monitoring and control systems, home automation, and DIY electronics projects. The module provides an analog output that corresponds to the measured temperature, making it easy to interface with microcontrollers and other digital devices.
Key Features:
- High sensitivity and accuracy
- Easy to interface with microcontrollers
- Analog output proportional to temperature
- Wide temperature measurement range
- Compact and easy to integrate into various projects
- Suitable for a variety of applications
- Sensor Type: NTC thermistor
- Temperature Measurement Range: -55°C to +125°C
- Output: Analog voltage
- Power Supply: 3.3V to 5V DC
- Dimensions: [Specify dimensions if known]
- Weight: [Specify weight if known]
- Operating Temperature: -40°C to +125°C
- Temperature monitoring and control systems
- Home automation
- HVAC systems
- Weather stations
- DIY electronics projects
- Industrial temperature sensing
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
