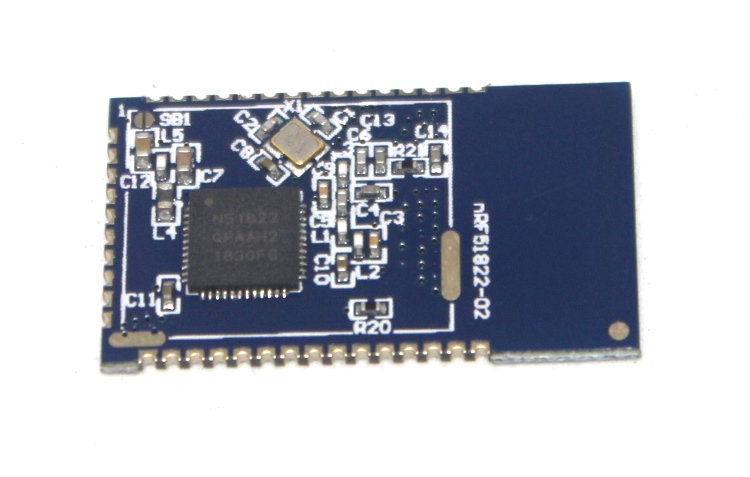

NRF51822 NORDIC BLE4.0 low power bluetooth data transmission module
This content will be shared across all product pages.
The NRF51822 is a highly integrated Bluetooth Low Energy (BLE) solution designed for low power wireless applications. This module, based on the Nordic Semiconductor NRF51822 SoC, supports BLE 4.0 and provides robust data transmission capabilities with minimal power consumption. It is ideal for a wide range of applications, including IoT devices, wearable technology, smart home products, and wireless sensors. The module integrates a 32-bit ARM Cortex-M0 CPU, 2.4 GHz transceiver, and a rich set of analog and digital peripherals.
Key Features:
- Bluetooth Low Energy (BLE) 4.0 compliant
- Based on Nordic Semiconductor NRF51822 SoC
- 32-bit ARM Cortex-M0 CPU
- 256kB Flash memory and 16kB RAM
- Low power consumption with advanced power management
- 2.4 GHz transceiver supporting data rates up to 1 Mbps
- Integrated DC-DC converter for power efficiency
- Wide range of analog and digital peripherals
- Programmable output power from -20dBm to +4dBm
- Over-the-air (OTA) firmware updates
- Compact design for easy integration
- SoC: Nordic Semiconductor NRF51822
- CPU: 32-bit ARM Cortex-M0
- Flash Memory: 256kB
- RAM: 16kB
- Operating Voltage: 1.8V to 3.6V
- Operating Temperature: -40°C to +85°C
- RF Transmit Power: -20dBm to +4dBm
- RF Receive Sensitivity: -93dBm
- Data Rate: Up to 1 Mbps
- Antenna: Integrated PCB antenna or external antenna option
- Internet of Things (IoT) devices
- Wearable technology
- Smart home products
- Wireless sensors
- Health and fitness monitors
- Industrial automation
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
